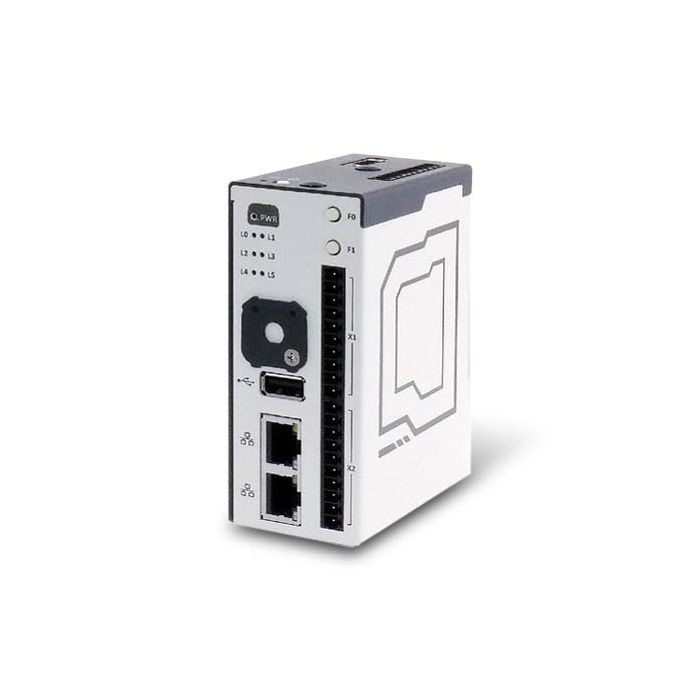

Industrial grade ARM-based IoT gateway 4-20mA analog input

SKU:

IGT-34C

Fabrikant:

Neousys

Please contact us for the delivery time.

Details

More Information

Downloads

More Information

Main features

Characteristics	Industrial grade ARM-based system with pre-installed Debian Built-in isolated analog input and DI/O channels Dual LAN and COM ports for expend 12 to 25V wide-range DC input and 802.3at PoE+ PD -25°C to 70°C wide temperature operation

Ports & Interfaces

LAN Interface	2
USB 2.0 ports	1
External I/O	Ethernet 2x 10/100 LAN, 1 with PoE PD USB 1x USB2.0 SD Card 1x external T-flash socket support miscro SDHC Function Buttons 2x user programmable buttons User LEDs 6x user programmable LEDs Isolated DIO 2x digital input, 6x digital output Analog Input 8x 16 bit 0-10V/ ±5V/ ±10V Voltage Input
PoE available	Yes
POE capability	PoE+PD IEEE 802.3at PoE+ PD

Storage

Storage Interface
SD Card
1x internal T-flash socket support micro SDHC
Mechanical specifications

Dimensions 43mm (W) x 77mm (D) x 104mm (H)

Mounting DIN-rail mount
Product features

Weight 0.5 kg
Electrical specifications

Input range 12~25V DC
Environmental specification

Storage temperature -40°C~85°C
Operating Temperature -25°C/+70°C
Certificates

standards CE/FCC Class A, according to EN55032 & EN55024
Software support

Operating System Debian 9 pre-installed
General data

Manufacturer Neousys
Application IoT
Warranty 24 Months

Downloads

datasheet	igt-33v-34c-arm-analog-input-iot-gateway.pdf

Price on request
