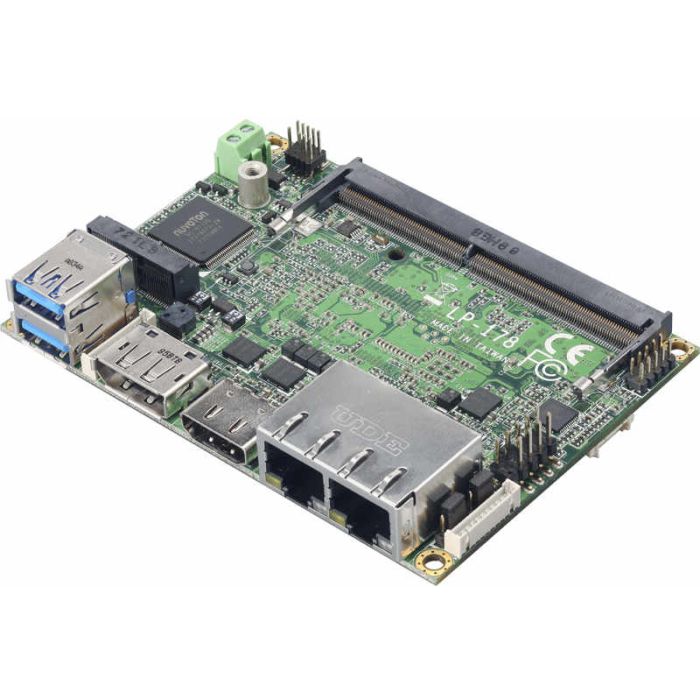

LP-1787:Pico-ITX MB Intel i7-8665UE, HDMI,DP up to 16GB DDR
Processor :
Intel Core
Max memory :
16GB
Type SBC :
Pico ITX
Operating Temperature :
0°C/+60°C
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
Processor
Processor Intel Core Processor serie Whiskey Lake Socket type BGA1528 Base Frequency 1,7 GHz Number of cores 4 chipset SoC
Memory
Memory type DDR4 Memory slots 1
Video
Connections • 1 x DisplayPort Chipset Intel® Gen 9.5 integrated HD Graphics
Main features
Characteristics • Onboard Intel® Whiskey Lake U Processor
Expansion
expansion slots • 1 x M.2 (Key E) for Wi-Fi and Bluetooth 2230mm
Ports & Interfaces
serial ATA interface 1 x SATA3 Watchdog timer Generates a system reset with internal timer for 1min/s ~ 255min/s LAN Interface 2 Audio interface Realtek ALC262 HD Audio External I/O • 1x DisplayPort Internal I/O • 1x SATA3
Mechanical specifications
Dimensions 100 mm x 72mm (L x W) Type SBC Pico ITX
Electrical specifications
Input range DC input 12V±5%
Environmental specification
Storage temperature Storage within -20°C~80°C Operating Temperature 0°C/+60°C relative air humidity 10%~90%, non-condensing
General data
Manufacturer Commell Application Automation, Digital signage Warranty 24 Months
