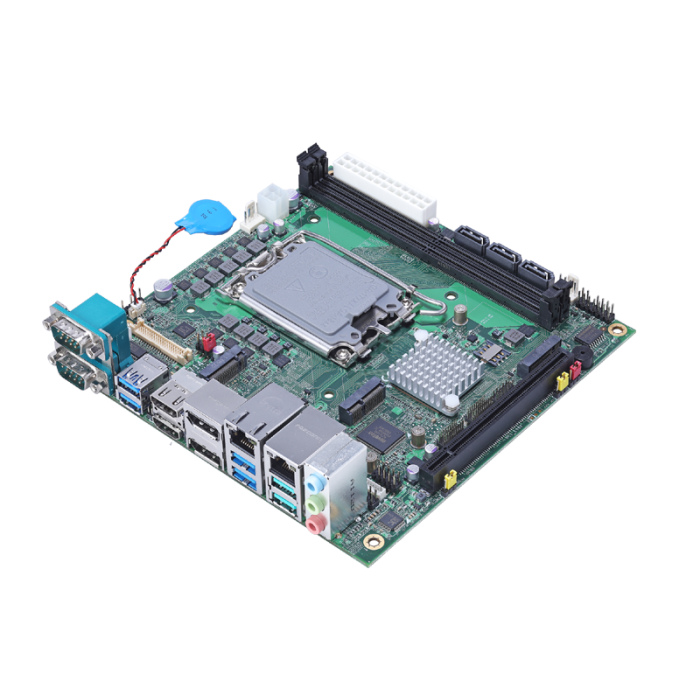

    miniITX Intel 12th/13th/14th Gen Q670E 2xGLAN 6xUSB 2xCOM

    SKU:
    LV-6714
    Fabrikant:
    Commell
    • Processor : Intel Core
    • Max memory : 64GB
    • Type SBC : Mini ITX
    • Operating Temperature : 0°C/+60°C
    miniITX Intel 12th/13th/14th Gen Q670E 2xGLAN 6xUSB 2xCOM
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads

    Introduction

    LV-6714
    LV-6714 is a Mini-ITX Motherboard which supports 12th & 13th & 14th Gen Desktop Processors, integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN,USB3.2 Gen2, SATA3 with AHCI function for a system.

    New feature for Alder Lake-S(12th) & Raptor Lake-S(13th) & Raptor Lake-S Refresh(14th Gen)
    12th & 13th & 14th Gen Desktop Processors are based on the Intel 7 SuperFin process, and offer long-life availability. i9-12900 with 8 P-cores and 8 E-cores. P-cores can help you handle heavy tasks, and E-cores run background tasks efficiently to save power. Support DDR5 Memory up to 4800 and PCIe gen 5 x16 Slot.

    All in One multimedia solution
    The board provides one M.2 3042 slot (support SATA), one M.2 2230 slot, one M.2 2280 slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen5 X16).

    Alder Lake support Windows10 version 21H2 64bit and Linux 5.18
    Intel recommends using Windows 10 version 21H2 64bit. It may lose some drivers if you use other Windows version.
    More Information
    • Processor
      ProcessorIntel Core
      Processor serieAlder Lake, Raptor Lake
      Socket typeLGA1700
      TDPup to 65W
      chipsetQ670E
    • Memory
      Memory typeDDR5
      Memory slots2
    • Video
      ConnectionsDisplayPort
      2x DisplayPort

      HDMI
      2x HDMI

      LVDS
      1x LVDS internal
      ChipsetIntel® UHD Graphics 770 / 730 / 710
    • Main features
      CharacteristicsFeatures
      • Support 12th & 13th & 14th Gen
      • Intel® Core™ Desktop Processors
      • 2x DDR5 DIMM 4800 MHz up to 64GB
      • Integrated DisplayPort, HDMI, LVDS for four display support
      • 1x Intel® Gigabit LAN PHY, 1 x Intel® 2.5 Gigabit LAN
      • 3x SATA3, 2 x USB2.0, 6 x COM, 1 x SIM Slot, 6 x USB3.2 Gen2
      • 1x M.2 2230 Key E for Wi-Fi and Bluetooth
      • 1x M.2 2280 Key M support PCIe Gen4 or SATA
      • 1x M.2 3042 Key B for 4G / 5G module or SATA
      • 1x PCIe x16 Slot support PCIe Gen5
      • Support Watchdog Timer, 4K resolution
      • Standard 24-pin ATX power supply and 4-pin 12V
    • Expansion
      expansion slotsPCI Express
      1x PCIe X16 slot support PCIe Gen5

      M.2
      x M.2 2230 Key E for Wi-Fi and Bluetooth
      1 x M.2 2280 Key M support PCIe Gen4 or SATA
      1 x M.2 3042 Key B for 4G / 5G module or SATA

      SIM Slot
      1x SIM Slot internal
    • Ports & Interfaces
      GPIO Interface1x GPIO
      serial ATA interface3x SATA3
      Watchdog timerGenerates a system reset with internal timer for 1 min/s ~ 255 min/s
      LAN Interface2
      USB 2.0 ports2
      USB 3.x ports6
      Audio interfaceRealtek ALC888S HD Audio
      External I/OEthernet Ports
      1x Intel® I219-LM Gigabit LAN PHY(Support iAMT16.0)
      1 x Intel® I226-LM Gigabit LAN

      USB
      6x USB3.2 Gen2

      Serial Port
      2x RS-232/422/485
      Internal I/OUSB
      2x USB2.0

      Serial
      4x RS-232

      SMBus
      1x SMBus

      LCD Connector
      1x LCD inverter connector

      GPIO
      1x GPIO by header SIM Slot
      1x SIM Slot
    • Storage
      Storage InterfaceSATA
      3x SATA3

      M.2
      1x M.2 2280 Key M support PCIe Gen4 or SATA
      1x M.2 3042 Key B for 4G / 5G module or SATA
      Note: M.2 slots are identical to expansion slots
    • Mechanical specifications
      Dimensions170mm x 170mm (L x W)
      Type SBCMini ITX
    • Electrical specifications
      Input rangeStandard 24-pin ATX power supply and 4-pin 12V
    • Environmental specification
      Storage temperature-20°C/+80°C
      Operating Temperature0°C/+60°C
      relative air humidity10%~90%, non-condensing
    • General data
      ManufacturerCommell
      ApplicationAutomation
      Warranty18 Months
