LV-6716

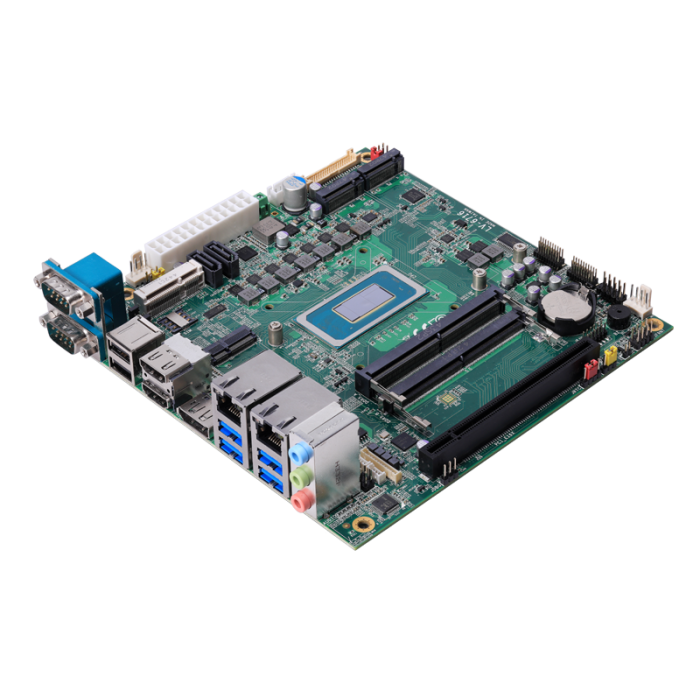

LV-6716 is a Mini-ITX Motherboard which supports Ultra Processor (MTL-H Platform), integrated DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.
New feature for Meteor Lake
Ultra Processor (MTL-H Platform) Features up to 16 cores/22 threads, with built-in NPUs for AI, and Arc graphics, the chips are Intel's first consumer processors running on its Intel 4 node, using the company's Foveros 3D hybrid architecture. Also be the first line of Intel processors using neural processing units, or NPUs.
All in One multimedia solution
The board provides one MiniPCIe slot (support mSATA), one M.2 2230 slot, two M.2 2280 slot (PCIe Gen4), and one PCIe x16 slot (PCIe Gen5 X8).
Meteor Lake support Windows10 & 11 64bit and Linux
Intel recommends using Windows 10 & 11 64bit. It may lose some drivers if you use other Windows version.
More Information
Processor
Processor
Core Ultra
Processor serie
Meteor Lake
Base Frequency
up to 5GHz Turbo
Number of cores
16
TDP
28W Base, up to 115W Turbo
chipset
SoC
Memory
Memory type
DDR5
Memory slots
2
Video
Connections
DisplayPort
1x DisplayPort ++
HDMI
2x HDMI
Note: upper HDMI and eDP can't be used at the same time
eDP
1x eDP
LVDS
1x LVDS by header
Chipset
Intel® Arc™ Graphics
Main features
Characteristics
Features
• Support Intel® Core™ Ultra Processor (MTL-H Platform)
• 2x DDR5 SO-DIMM 5600 MHz up to 96GB
• Integrated DisplayPort ++, HDMI, LVDS for four display support
• 3x Intel® 2.5 Gigabit LAN
• 1x MiniPCIe support mSATA
• 2x M.2 2280 Key M support PCIe Gen4 for NVMe
• 1x M.2 2230 Key E for Wi-Fi and Bluetooth
• 2x SATA3, 4 x USB2.0, 4 x USB3.2 Gen2, 6 x COM
• 1x GPIO, 1 x PCIe x16 Slot (support Gen5 X8)
• Intel® Core™ Ultra processors feature 3D performance hybrid architecture
• Advanced Intel® AI Boost NPU for low-power AI acceleration and CPU/GPU off-load
• Standard 24-pin ATX power supply or DC input 9~35
Expansion
expansion slots
PCI Express
1x PCIe x16 Slot (support Gen5 X8)
Mini PCIe
1 x MiniPCIe (support mSATA)
Note: mSATA and SATA2 can't be used at the same time
M.2
1x M.2 2230 Key E for Wi-Fi and Bluetooth
SIM Slot
1x SIM slot
Ports & Interfaces
GPIO Interface
1x GPIO
serial ATA interface
2x SATA3
Watchdog timer
Generates a system reset with internal timer for 1 min/s ~ 255 min/s
LAN Interface
3
USB 2.0 ports
4
USB 3.x ports
4
Audio interface
Realtek ALC888S HD Audio
External I/O
Ethernet Ports
1 x Intel® I226-LM Gigabit LAN (up to 2.5GbE)
2 x Intel® I226-V Gigabit LAN (up to 2.5GbE)
USB
4x USB3.2 Gen2,
2x USB2.0
Serial Port
2x RS-232/422/485
Internal I/O
USB
2x USB2.0
Serial
4x RS-232
SMBus
1x SMBus
LCD Connector
1x LCD inverter connector
GPIO
1x GPIO by header
Storage
Storage Interface
SATA
2x SATA3
M.2
2x M.2 (Key M 2280) support PCIe Gen4 for NVMe
MSATA
1x mSATA port (mux with mini-PCIe)
Mechanical specifications
Dimensions
170mm x 170mm (L x W)
Type SBC
Mini ITX
Electrical specifications
Input range
Standard 24-pin ATX power supply or DC input 9~35V
