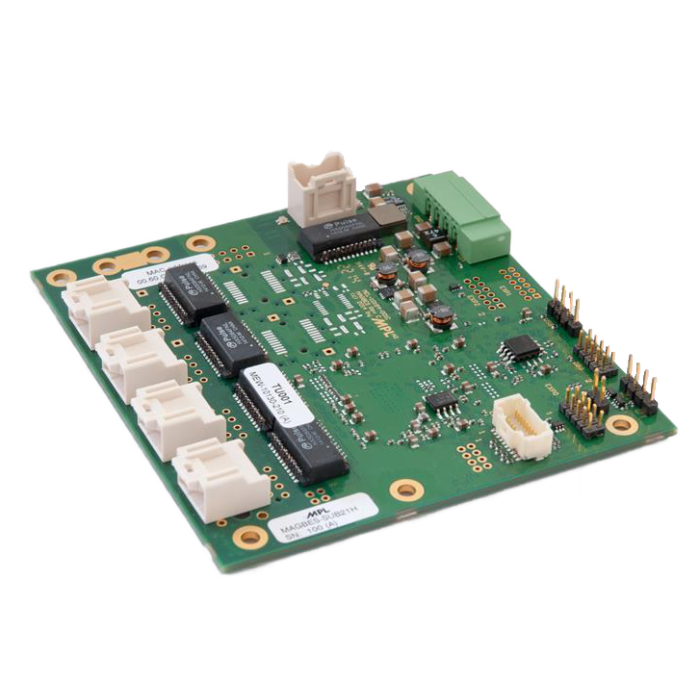

main product photo

Mngt Gigabit Switch PC/104 5prt on 2mm lockable headers

SKU:

MAGBES-21HP

Fabrikant:

MPL

Manufacturer : MPL
Device : Managed Switch

Please contact us for the delivery time.

Details

More Information

Downloads

More Information

Main features

Characteristics	Fully manageable over Web Interface or Telnet Fanless operation Copper or mixed Copper/Fiber versions DIN-Rail / Flange mount Wide input 5-36VDC Versions for -40°C to +85°C environment

Ports & Interfaces

LAN Interface 5
Jumbo frame up to 10k Byte
Electrical specifications

Input range 5VDC - 36VDC Input range
Environmental specification

Storage temperature -45°C up to +85°C
Operating Temperature -20°C/+60°C
relative air humidity 5% to 95% non condensing

Certificates

standards	The MAGBES is designed to meet or even exceed the most common standard Particular references are: EMC EN 55022, EN 55024, EN 61000, MIL-STD-461E Shock & Vibration EN 60068 Environmental & Safety EN 50155, MIL-STD-810-F, EN 60601, EN 60950 Approval List CE, IEC 60945, IACS E10 The MAGBES family has been successfully tested according EN50155, MIL-STD-810-G as well as CE marking

General data

Manufacturer	MPL
Warranty	36 Months
ordering options	MAGBES -F21R 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 5 ports on RJ45 with a Standard housing (inkl. MAGBES 62-2), Flange mount MAGBES -D21R 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 5 ports on RJ45 with a Standard housing (inkl. MAGBES 62-1), DIN-Rail mount MAGBES -F21M 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 5 ports on M12 with a Standard housing (inkl. MAGBES 62-2), Flange mount MAGBES -D21M 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 5 ports on M12 with a Standard housing (inkl. MAGBES 62-1), DIN-RaiL mount MAGBES -F22R 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 3 ports on RJ45 and 2 × fiber ports (1 × SFP cage) with a Standard housing (inkl. MAGBES 62-2), Flange mount The SFP Module is not an integrated part of the module and need to be ordered separately. MAGBES -D22R 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 3 ports on RJ45 and 2 × fiber ports (1 × SFP cage) with a Standard housing (inkl. MAGBES 62-1), DIN-Rail mount The SFP Module is not an integrated part of the module and need to be ordered separately. MAGBES -F22M 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 3 ports on M12 and 2 × fiber ports (2 × SFP cage) with a Standard housing (inkl. MAGBES 62-2), Flange mount The SFP Module is not an integrated part of the module and need to be ordered separately. MAGBES -D22M 5 port Manageable Gigabit Ethernet Switch with power connector (5 -36VDC). 3 ports on RJ45 and 2 × fiber ports (2 × SFP cage) with a Standard housing (inkl. MAGBES 62-1), DIN-Rail mount The SFP Module is not an integrated part of the module and need to be ordered separately.

Downloads

datasheet	MPLdoc_00000553.pdf

Price on request
