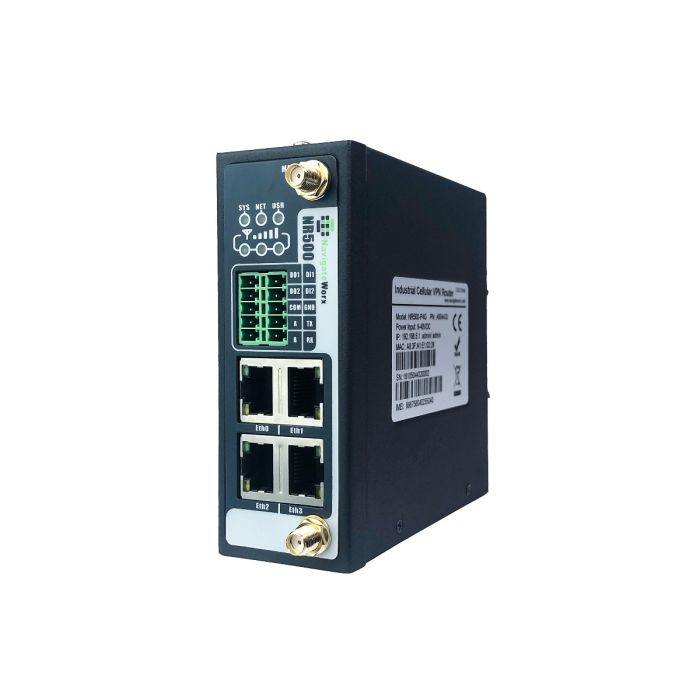

    NR500-P4G Dual SIMs, 4xEth Ports 1xRS232 1xRS485 2x DI 2xDO

    SKU:
    A504433
    Fabrikant:
    NavigateWorx
    • Application : Automation, Digital signage, IoT, In-vehicle
    • Device : Gateways
    • wifi : Without
    • mobile network : 2G, 3G, 4G
    NR500-P4G Dual SIMs, 4xEth Ports 1xRS232 1xRS485 2x DI 2xDO
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads

    NAVIGATEWORX NR500 PRO

    Industrial Cellular VPN Router, Dual SIM Failover, Multiple Industrial Interfaces

    Navigateworx NR500 Pro industrial cellular VPN router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.

    NR500 Pro router has dual SIM backup, 4 Ethernet ports, RS232 and RS485 interfaces are provided to support Serial to IP communication. GPS is optional based on LTE module capability. Supports 9 to 48 VDC wide range power inputs, designed with reverse-voltage protection mechanism. It is an advanced choice for wireless M2M applications with reliable features for data transmission.
    More Information
    • Main features
      Characteristics● Wireless Mobile Broadband 2G / 3G / 4G Connection
      ● Connection manager ensure seamless communication
      ● Support Multiple VPN tunnels for data encryption
      ● Industrial design for harsh environment
      ● Metal casing and din-rail installation
      ● User friendly web interface for user interaction
      ● Support Central Management Platform
      ● Reduce high costs for onsite maintenance
    • Ports & Interfaces
      wifiWithout
      LAN Interface4
      External I/OLan
      1 x WAN + 3 x LAN or 4 x LAN, Auto 10/100 Mbps

      Serial
      1 x RS-232 (3 PIN)
      1 x RS-485

      Digital I/O
      2 x DI
      2 x DO

      Sim
      2 x SIM slots, 1.8V / 3V
    • Mechanical specifications
      Dimensions106mm x 106mm x 40mm
      CasingMetal case. IP-30
      MountingDIN-rail mounting
    • Product features
      Weight300g
    • Electrical specifications
      Input range9 to 48 VDC
      Power consumptionIdle: 100 mA@12 V </br>Data link: 400 mA (peak) @12 V
    • Environmental specification
      Storage temperature-40 °C/+75 °C
      Operating Temperature-40°C/+75°C
      relative air humidity5% to 95% non-condensing
    • Certificates
      certificatesApproval

      EMI
      EN 55032:2012 Class B

      EMS
      IEC 61000-4-2 ESD Level 4
      IEC 61000-4-3 RS Level 3
      IEC 61000-4-4 EFT Level 3
      IEC 61000-4-5 Surge Level 3
      IEC 61000-4-6 CS Level 3

      Vibration EN50155
    • General data
      ManufacturerNavigateWorx
      ApplicationAutomation, Digital signage, IoT, In-vehicle
      Warranty24 Months
    Downloads
  • ManualNW_UM_NR500_Pro_V1.3.2.pdf
    datasheetNW_DS_NR500-PRO_V1.3.7.pdf
    		•
