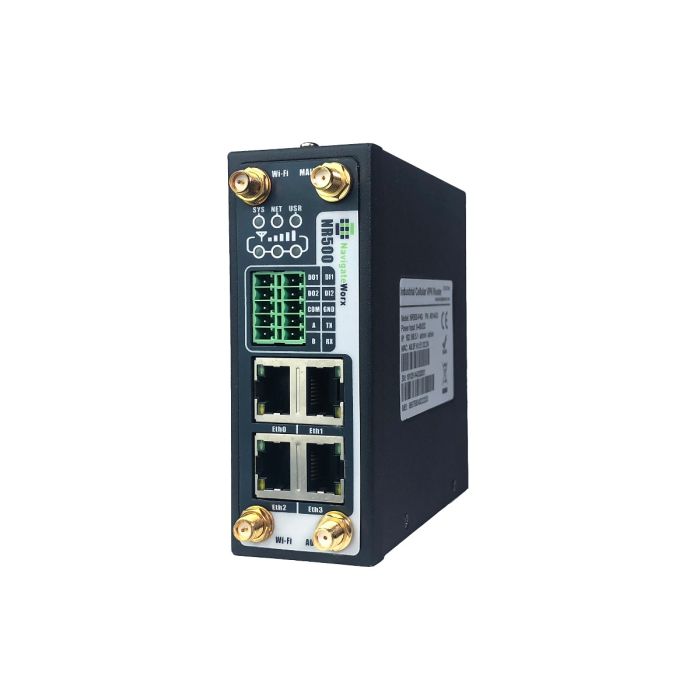

main product photo

NR500-P4G Dual SIMs, 4xEth Ports, 1xRS232, 1xRS485 WIFI aGPS

SKU:

A514733

Fabrikant:

NavigateWorx

Application : Automation, Digital signage, IoT, In-vehicle
Device : Gateways
wifi : 2.4 GHz (b/g/n)
mobile network : 2G, 3G, 4G

NR500-P4G Dual SIMs, 4xEth Ports, 1xRS232, 1xRS485 WIFI aGPS

In Stock local

Details

More Information

Downloads

More Information

Main features

Characteristics	● Wireless Mobile Broadband 2G / 3G / 4G Connection ● Connection manager ensure seamless communication ● Support Multiple VPN tunnels for data encryption ● Industrial design for harsh environment ● Metal casing and din-rail installation ● User friendly web interface for user interaction ● Support Central Management Platform ● Reduce high costs for onsite maintenance

Ports & Interfaces

wifi	2.4 GHz (b/g/n)
LAN Interface	4
External I/O	Lan 1 x WAN + 3 x LAN or 4 x LAN, Auto 10/100 Mbps Serial 1 x RS-232 (3 PIN) 1 x RS-485 Digital I/O 2 x DI 2 x DO Sim 2 x SIM slots, 1.8V / 3V
Encryption Security	WPA, WPA2, WEP, CCMP, TKIP

Mechanical specifications

Dimensions 106mm x 106mm x 40mm
Casing Metal case. IP-30
Mounting DIN-rail mounting
Product features

Weight 300g
Electrical specifications

Input range 9 to 48 VDC
Power consumption Idle: 100 mA@12 V </br>Data link: 400 mA (peak) @12 V
Environmental specification

Storage temperature -40 °C/+75 °C
Operating Temperature -40°C/+75°C
relative air humidity 5% to 95% non-condensing

Certificates

certificates	Approval EMI EN 55032:2012 Class B EMS IEC 61000-4-2 ESD Level 4 IEC 61000-4-3 RS Level 3 IEC 61000-4-4 EFT Level 3 IEC 61000-4-5 Surge Level 3 IEC 61000-4-6 CS Level 3 IEC 61000-4-12 Level 3 Vibration EN50155

General data

Manufacturer NavigateWorx
Application Automation, Digital signage, IoT, In-vehicle
Warranty 24 Months

Downloads

Manual	NW_UM_NR500_Pro_V1.3.2.pdf
datasheet	NW_DS_NR500-PRO_V1.3.7.pdf

€407.77 €337.00
