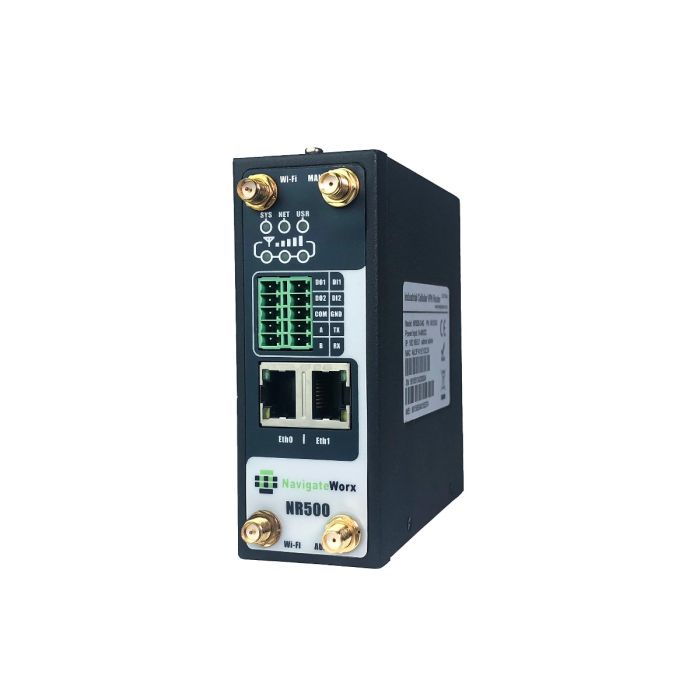

    main product photo

    NR500-S4G Dual SIMs 2xEth Ports, 1xRS232 1x RS485 WIFI+aGPS

    SKU:
    A512733
    Fabrikant:
    NavigateWorx
    • Application : Automation, Digital signage, Datacenter , IoT, In-vehicle
    • Device : Gateways
    • wifi : 2.4 GHz (b/g/n)
    • mobile network : 2G, 3G, 4G
    NR500-S4G Dual SIMs 2xEth Ports, 1xRS232 1x RS485 WIFI+aGPS
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      Characteristics• Wireless Mobile Broadband 2G / 3G / 4G Connection • Industrial designed for harsh environment • Compact metal casing for easy mounting • Support Multiple Encryption tunnels for data encryption • Firewall prevents unsafe and unauthorized access • User-friendly web interface for human interaction • Support Central Device Management Platform • Remote access to SCADA System for Industrial Automation
    • Ports & Interfaces
      wifi2.4 GHz (b/g/n)
      LAN Interface2
      External I/OLan
      1 x WAN + 1 x LAN or 2 x LAN, Auto 10/100 Mbps

      Serial
      1 x RS-232 (3 PIN) + 1 x RS-485

      DIGITAL INPUT & OUTPUT
      2 x DI + 2 x DO

      Sim
      2 x SIM slots, 1.8V / 3V
      Wireless SecurityWPA, WPA2, WEP, CCMP, TKIP
    • Mechanical specifications
      Dimensions106mm x 106mm x 40mm
      CasingMetal case. IP-30
      MountingDIN-rail mounting
    • Product features
      Weight300g
    • Certificates
      standardsApproval
      EMI
      EN 55032:2012 Class B

      EMS
      IEC 61000-4-2 ESD Level 4
      IEC 61000-4-3 RS Level 3
      IEC 61000-4-4 EFT Level 3
      IEC 61000-4-5 Surge Level 3
      IEC 61000-4-6 CS Level 3
      IEC 61000-4-12 Level 3

      Vibration
      EN50155
    • General data
      ManufacturerNavigateWorx
      ApplicationAutomation, Digital signage, Datacenter , IoT, In-vehicle
      Warranty24 Months
    Downloads
  • ManualNW_UM_NR500_Std_V1.3.2.pdf
    datasheetNW_DS_NR500-STD_V1.3.7.pdf
    		•
