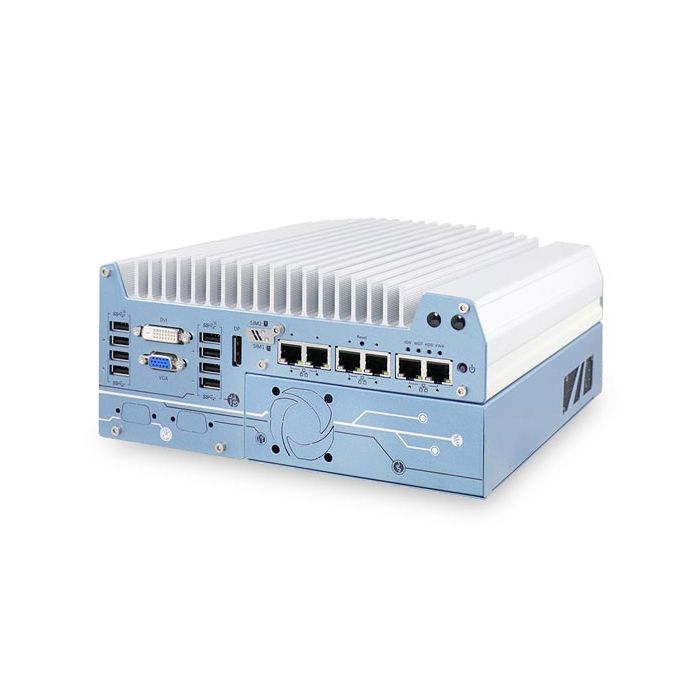

Nuvo-7006DE-PoE Fanless industrialPC 8th-Gen Corei 6xGBE 2xP

SKU:
SCA-990944-BG
Fabrikant:
Neousys
  • SKU : SCA-990944-BG
  • Processor : Intel Core
  • Max memory : 64GB
  • Operating Temperature : -25°C/+70°C
Note: Not recommended for new designs. For new projects we recommend successor Nuvo-11000 or 9000 series. Please contact us for more information.

Please contact us for the delivery time.
Configure this system
Details
More Information
Downloads

Introduction

Introducing Neousys Technology's 2018 flagship rugged fanless embedded computers, the new Nuvo-7000 series, powered by Intel® 9th/ 8th-Gen Core™ i processors with up to 8/ 6-core architecture that offer significant performance improvement over previous 6th and 7th-Gen platforms.

Nuvo-7000 series includes Neousys' track-proven technologies for superior ruggedness and versatility, such as effective fanless design, patented expansion Cassette and proprietary MezIO™ interface. It also incorporates cutting-edge computer I/O like USB 3.1 Gen2 with up to 10 Gbps throughput and M.2 2280 M key socket for NVMe SSD or Intel® Optane™ memory for ultimate system performance. The plethora of on-board I/O ports (GbE, USB and COM) feature sophisticated protection circuits to endure stress from ESD and power surge. This makes Nuvo-7000 series by far the most rugged embedded computer we've ever created.

Flexible and versatile for a variety of applications, Nuvo-7000 variants are available with different Cassette expansion options. With Neousys Nuvo-7000 series, you get a true rugged platform that can accommodate a single PCIe card (Nuvo-7000E), dual PCIe cards (Nuvo-7000DE) or a single PCI card (Nuvo-7000P) according your application needs.


9th/ 8th-Gen Core i CPU
Powered by Intel® 9th/ 8th-Gen Core™ processor running with advanced Intel® Q370 chipset, The Nuvo-7000 series fanless embedded computer provides outstanding performance for emerging high-end requirement than 6th & 7th generations.

Wide Temperature Range Operation
The Nuvo-7000 series fanless embedded computer has patented passive cooling thermal design that can effectively channel heat from heat sink and truly operate in wide temperature range from -25℃ to 70℃ while under 100% CPU loading.

Patented Expansion Cassette
Neousys' Patented Cassette is an innovative and brilliant method to accommodate an add-on card. The modularized design offers easy installation/ replacement and the possibility of passive cooling for add-on card brings reliability and flexibility to the system. You can install COTS PCI/PCIe card for function expansion, or choose Neousys' offer of Cassette module with pre-installed heat-spreader to include PoE+, USB 3.1 Gen1 or independent graphics card.

The MezIO™ Interface and Modules
MezIO™ interface is designed for incorporating application-oriented I/O functions into an embedded system. Neousys offers a variety of Nuvo-7000 compatible MezIO™ modules with various I/Os such as RS-232/422/485, isolated DIO and ignition power control. Users can also leverage signals/ power supplied by the MezIO™ interface to customize one's own module. Neousys MezIO™ presents a cost-effective way to build a tailor made embedded system for your application.
More Information
  • Processor
    ProcessorIntel Core
    Processor serieCoffee lake
    Socket typeLGA1151
    Base Frequency1.80 GHz
    Number of cores8
    TDP35W
    chipsetQ370
  • Memory
    Memory typeDDR4
    Memory slots2
  • Video
    ConnectionsVGA
    1x VGA connector, supporting 1920 x 1200 resolution

    DVI
    1x DVI-D connector, supporting 1920 x 1200 resolution

    DisplayPort
    1x DisplayPort connector, supporting 4096 x 2304 resolution
    ChipsetIntegrated Intel® UHD Graphics 630
  • Main features
    Characteristics● Intel® 9th/ 8th-Gen Core™ i 35W/ 65W LGA1151 CPU
    ● Patented Cassette for PCI/PCIe add-on card accommodation
    ● MezIO™ interface for easy function expansion
    ● Rugged, wide temperature range from -25°C to 70°C fanless operation
    ● Up to 6x GigE ports, supporting 9.5 KB jumbo frame
    ● M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
    ● 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
    ● VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
  • Expansion
    expansion slotsPCI-E
    2x PCIe x16 slots @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000DE)

    Mini PCI-E
    1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)

    M.2
    1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module

    Expandable I/O
    1x MezIO™ expansion port for Neousys MezIO™ modules
  • Ports & Interfaces
    LAN Interface8
    USB 3.x ports8
    External I/OLAN
    2x Gigabit Ethernet ports by I219 and I210 (Nuvo-7002E/ P/ DE)
    6x Gigabit Ethernet ports by I219 and 5x I210 (Nuvo-7006E/ P/ DE)

    Serial
    2x software-programmable RS-232/422/485 ports (COM1/ COM2)
    2x RS-232 ports (COM3/ COM4)

    USB
    4x USB 3.1 Gen2 (10 Gbps) ports
    4x USB 3.1 Gen1 (5 Gbps) ports

    PoE availableYes
    POE capabilityOptional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
  • Storage
    Storage InterfaceSATA
    2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1

    M.2
    1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation

    mSATA
    1x full-size mSATA port (mux with mini-PCIe)
  • Mechanical specifications
    Dimensions240 mm (W) x 225 mm (D) x 110.5 mm
    CasingWallmount
    MountingWall-mounting (standard) or DIN-Rail mounting (optional)
  • Product features
    Weight3.7 kg
  • Electrical specifications
    Input range8V to 35V DC
    Ignition control1x 3-pin pluggable terminal block for remote control and PWR LED output
  • Environmental specification
    Storage temperature-40°C /+85°C
    Operating Temperature-25°C/+70°C
    relative air humidity10% ~ 90% , non-condensing
  • Certificates
    certificatesVibration
    Operating
    MIL-STD-810G, Method 514.6, Category 4

    Shock
    Operating
    MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II

    EMC
    CE/FCC Class A, according to EN 55032 & EN 55024
  • General data
    ManufacturerNeousys
    ApplicationAutomation, Digital signage, IoT, In-vehicle
    Warranty24 Months
