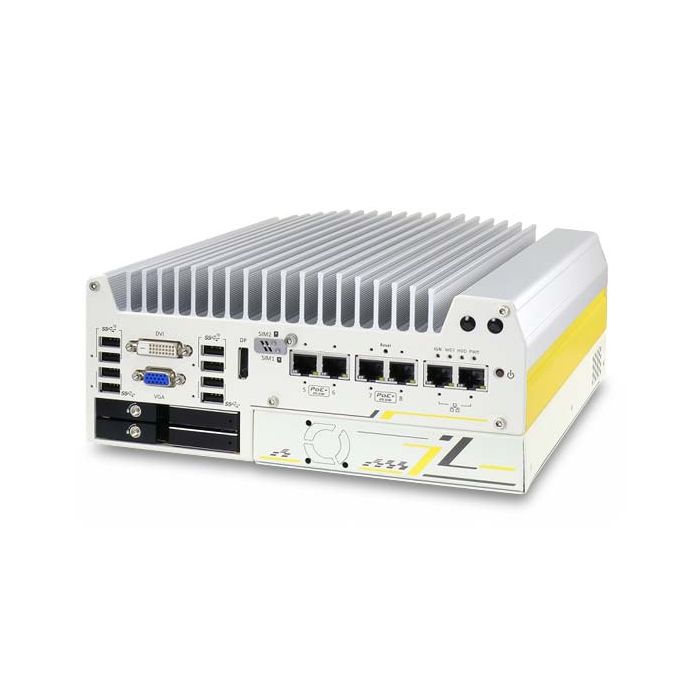

Nuvo-7200VTC(EA) Fanless Computer

SKU:
SCA-990944-DX
Fabrikant:
Neousys
  • SKU : SCA-990944-DX
  • Processor : Intel Core
  • Max memory : 64GB
  • Operating Temperature : -40°C/+85°C
Note: Not recommended for new designs. For new projects we recommend successor Nuvo-11000 or 9000 series. Please contact us for more information.

Due to component scarcity, no audio on this device

Please contact us for the delivery time.
Configure this system
Details
More Information
More Information
  • Processor
    ProcessorIntel Core
    Processor serieCoffee lake
    Socket typeLGA1151
    chipsetQ370
  • Memory
    Memory typeDDR4
    Memory slots2
  • Video
    Connections1x VGA connector, supporting 1920 x 1200 resolution
    1x DVI-D connector, supporting 1920 x 1200 resolution
    1x DisplayPort connector, supporting 4096 x 2304 resolution
    ChipsetIntegrated Intel® HD Graphics 630
  • Main features
    Characteristics● Supports Intel® 9th/ 8th Core™ i7/ i5/ i3 LGA1151 socket-type CPU
    ● 4x or 8x 802.3at Gigabit PoE+ ports via M12 or RJ45 connectors
    ● Onboard isolated CAN bus for in-vehicle communication
    ● 4-CH isolated DI and 4-CH isolated DO
    ● 2x hot-swappable SATA HDD trays, supporting RAID 0/1
    ● 2x M.2 B key and 3x full-size mini-PCIe sockets
    ● 8~35V wide-range DC input with built-in ignition power control
    ● Patented Cassette for PCIe add-on card accommodation
    ● E-Mark and EN 50155/ EN45545 certificate
  • Expansion
    expansion slotsPCI Express
    1x PCIe x16 slot @Gen3, 16-lanes PCIe signals in Cassette

    Mini PCI-E
    1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
    2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets

    M.2
    2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
  • Ports & Interfaces
    RAID0, 1
    LAN Interface2
    USB 3.x ports8
    Audio interfaceDue to component scarcity, no audio on this device

    External I/OSerial Port
    COM1 and COM2 software-programmable RS-232/422/485
    COM3 and COM4 RS-232
    CAN
    1x isolated CAN 2.0 port

    Isolated DIO
    4x isolated DI and 4x isolated DO
    PoE availableYes
    POE capability8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
    - RJ45 connector (Nuvo-7208VTC)
  • Storage
    RAID0, 1
    Storage InterfaceSATA HDD\SSD
    2x hot-swappable HDD tray for 2.5" HDD/ SSD installation, supporting RAID 0/ 1

    mSATA
    1x full-size mSATA port (mux with mini-PCIe)

    M.2
    1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
  • Mechanical specifications
    Dimensions240 mm (W) x 225 mm (D) x 103mm (H)
    MountingMounting Wall-mount with damping brackets (Standard) or DIN-rail mount (optional)
  • Product features
    Weight3.7 kg
  • Electrical specifications
    Input range8V to 35V DC
    Ignition control1x 3-pin pluggable terminal block for remote control and PWR LED output
  • Environmental specification
    Storage temperature-40°C/+70°C
    For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
    Operating Temperature-40°C/+85°C
  • General data
    ManufacturerNeousys
    ApplicationAutomation, Defense & Avionica, Digital signage, IoT, In-vehicle, Railway
    Warranty24 Months
