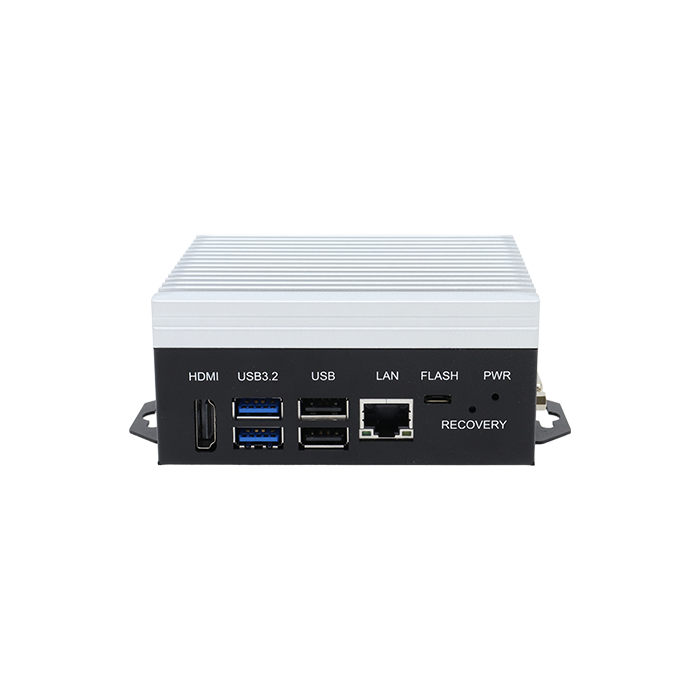

    main product photo

    Nvidia Jetson Orin NX 8GB 1xGLAN 4xUSB 4xM.2 SIM CANBus

    SKU:
    AITAS-EN302
    Fabrikant:
    Aplex
    • SKU : AITAS-EN302
    • Processor : NVIDIA Jetson
    • Max memory : 8GB
    • Operating Temperature : -15°C/+55°C
    Nvidia Jetson Orin NX 8GB 1xGLAN 4xUSB 4xM.2 SIM CANBus
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    AITAS-EN302
    AITAS-EN302, powered by Jetson Orin NX 8G, is a reliable and powerful AI inference device designed for edge applications. It delivers full bandwidth and power capabilities, efficiently scaling video inputs for seamless AI inference.
    More Information
    • Processor
      ProcessorNVIDIA Jetson
      Processor serieNVIDIA® Jetson Orin™ NX
      Base Frequency6-Core ARM Cortex A78AE: max. 2GHz
      Number of cores6
      TDP40W
      chipsetSoC
    • Memory
      Memory typeLPDDR5
    • Video
      ConnectionsHDMI
      1x HDMI 2.0 Type A
      Chipset1024 Core NVIDIA Ampere, with 32 Tensor Cores
    • Main features
      CharacteristicsFeatures
      • NVIDIA Jetson Orin NX 8GB
      • 1x M.2 3052 B-Key for M.2 2242 B+M Key SSD
      • 1x RJ-45 GbE Ports
      • Wide Power Input Range 12~24V DC
      • Operating temperature -15°C ~ +55°C
      • Fanless Design
    • Expansion
      expansion slotsM.2
      1 x M.2 3042/3052 B Key (4G/5G/M.2 2242 B+M-Key Storage)
      1 x M.2 2230 E-Key (Wi-Fi/BT/storage)

      SIM Slot
      1x SIM Slot
    • Ports & Interfaces
      LAN Interface1
      USB 2.0 ports2
      USB 3.x ports2
      External I/OEthernet Ports
      1x RJ-45 GbE Port

      USB
      2x USB 3.2 Gen2 Type A (supports up to 10Gbps shared)
      2x USB 2.0 (Type-A)
      1 x Micro USB (for OS Flash)

      Serial / CANBus / DIO
      1x DB-9 for RS-232 (Rx/Tx/CTS/RTS) / 1x CANBus 2.0
      1x DB-15 for RS-232 (Rx/Tx)/422/485 / 8x DIO

      Antenna
      2x Antenna
      PoE availableNo
    • Storage
      Storage InterfaceM.2
      1x x M.2 3052 B-Key for M.2 2242 B+M-Key SSD (default storage)
      1x M.2 2230 E-Key (optional)
    • Mechanical specifications
      Dimensions105mm (W) x 90mm (D) x 49mm (H)
      MountingWallmount, DinRail
    • Electrical specifications
      Input rangeDC-in 12~24V DC / 2 pins terminal block
      Power consumptionFull Loading: 60W
    • Environmental specification
      Storage temperature-40°C/+85°C
      Operating Temperature-15°C/+55°C
    • Certificates
      certificatesCE / FCC Class A
    • General data
      ManufacturerAplex
      ApplicationAutomation
      Warranty24 Months
    Downloads
  • datasheetAITAS-EN302_V1.3.pdf
    		•
