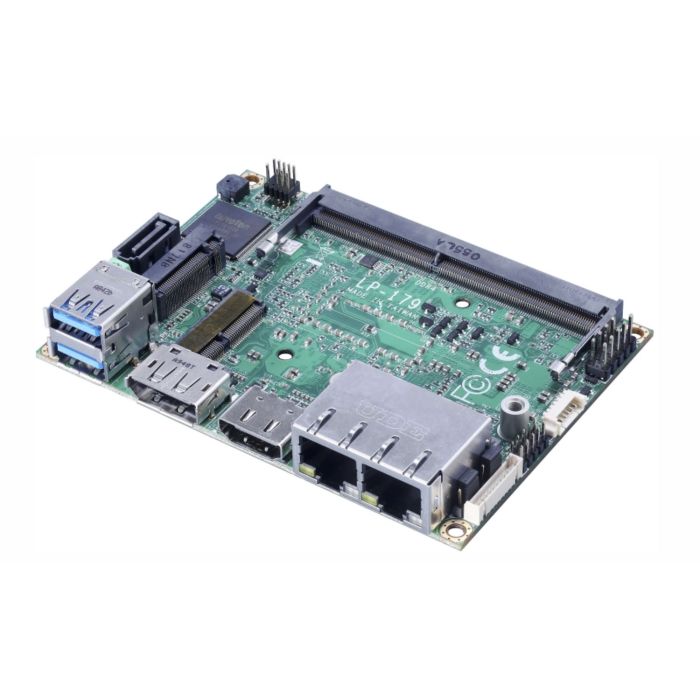

Pico-ITX Miniboard, Celeron 6305E + Cooler fan

  • Processor : Intel Celeron
  • Max memory : 16GB
  • Operating Temperature : 0°C/+60°C
Pico-ITX Miniboard, Celeron 6305E + Cooler fan
Please contact us for the delivery time.
More Information
More Information
  • Processor
    ProcessorIntel Celeron
    Processor serieWhiskey Lake
    Socket typeBGA1528
    Base Frequency1.80 GHz
    Number of cores4
  • Memory
    Memory typeDDR4
    Memory slots1
  • Video
    Connections1x Display port 1 x HDMI,
    Chipset Intel® UHD Graphics
  • Main features
    Characteristics● Onboard Intel® Whiskey Lake U Processor
    ● 1 x DDR4 SO-DIMM 2400 MHz up to 16GB
    ● Integrated DisplayPort, HDMI,
    ● 1 x Intel® Gigabit PHY LAN, 1 x Intel® Gigabit LAN, 1 x M.2 (Key E)
    ● 1 x SATA3, 2 x USB2.0, 2 x USB3.1 Gen2, 2 x RS232,
    ● Support Watchdog Timer
    ● Support 4K resolution
    ● DC input 12V ±5%
  • Expansion
    expansion slotsM.2
    1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth
  • Ports & Interfaces
    LAN Interface2
    USB 2.0 ports2
    USB 3.x ports2
    Audio interface1 x By header
    External I/OLAN
    1 x Intel® I219-LM Gigabit PHY LAN
    1 x Intel® I210-AT Gigabit LAN

    2 x USB3.1 Gen2
    Internal I/OSerial
    2 x RS232 by header

    USB 2 x USB2.0 by header
  • Storage
    Storage InterfaceSata
    1 x SATA3
  • Mechanical specifications
    Dimensions100 mm x 72mm (L x W)
  • Electrical specifications
    Input rangeDC input 12V±5%
  • Environmental specification
    Storage temperature-20°C/+80°C
    Operating Temperature0°C/+60°C
    relative air humidity10%~90%, non-condensing
  • General data
    Warranty24 Months
