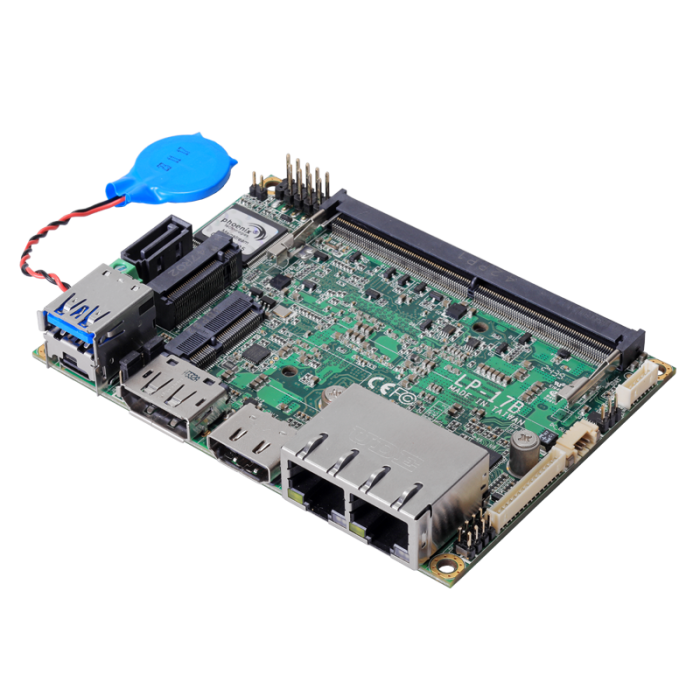

PicoITX Intel Ultra 7 165U Fan 2x 2.5GLAN 2xM.2 2xUSB

SKU:

LP-17B7

Fabrikant:

Commell

Processor : Core Ultra
Max memory : 48GB
Type SBC : Pico ITX
Operating Temperature : 0°C/+60°C

PicoITX Intel Ultra 7 165U Fan 2x 2.5GLAN 2xM.2 2xUSB

Please contact us for the delivery time.

Add to Compare

Details

More Information

Downloads

Introduction

LP-17B
LP-17B is a Pico-ITX Motherboard which Ultra U Processors, integrated Intel® Graphics, DDR5 memory, Realtek High Definition Audio, Intel Gigabit LAN, USB3.2 Gen2, SATA3 with AHCI function for a system.

New feature for Meteor Lake
Ultra Processor Features up to 12 cores/14 threads, with built-in NPUs for AI accelerator. And feature 3D performance hybrid architecture, combining two core microarchitectures on a single processor chip, prioritizing and distributing workloads to optimize performance.

All in One multimedia solution
The board provides high performance onboard graphics, and supports Type C (Alt mode), HDMI, Display Port ++, and High Definition Audio, to meet the very requirement of the multimedia application.

Meteor Lake support Windows10 & 11 64bit and Linux
Intel recommends using Windows 10 & 11 64bit. It may lose some drivers if you use other Windows version.

More Information

Processor

Processor	Core Ultra
Processor serie	Meteor Lake
Base Frequency	up to 4.9GHz Turbo
Number of cores	12
TDP	15W Base, up to 57W Turbo
chipset	SoC

Memory

Memory type DDR5
Memory slots 1

Video

Connections	DisplayPort 1x DisplayPort++ 1x Type-C (DP Alt Mode) HDMI 1x HDMI eDP 1x eDP internal LVDS 1x LVDS internal
Chipset	Intel® Graphics

Main features

Characteristics

Features
• Support Intel® Core™ Ultra Processor (MTL-U Platform)
• 1x DDR5 SO-DIMM 5600 MHz up to 48GB
• Integrated HDMI, DisplayPort ++, Type-C (DP Alt.Mode)
• 2x Intel® 2.5 Gigabit LAN
• 1x M.2 2230 Key E
• 1x M.2 2280 Key M support PCIe Gen4 for NVMe x4 or SATA
• 1x SATA3, 2 x USB2.0, 1 x USB3.2 Gen2
• 1x RS232/ RS422/ RS485, 1 x GPIO
• Intel® Core™ Ultra processors feature 3D performance hybrid architecture
• Advanced Intel® AI Boost NPU for low-power AI acceleration and CPU/GPU off-load
• DC input 12V ±5%

Expansion

expansion slots M.2
1x M.2 2230 Key E for Wi-Fi and Bluetooth
1x M.2 2280 Key M support PCIe Gen4 or SATA

Ports & Interfaces

GPIO Interface	1x GPIO
serial ATA interface	1x SATA3
Watchdog timer	Generates a system reset with internal timer for 1 min/s ~ 255 min/s
LAN Interface	2
USB 2.0 ports	2
USB 3.x ports	1
Audio interface	Realtek ALC888S HD Audio
External I/O	Ethernet Ports 1 x Intel® I226-LM Gigabit LAN (up to 2.5GbE) 1 x Intel® I226-V Gigabit LAN (up to 2.5GbE) USB 1x USB3.2 Gen2
Internal I/O	USB 2x USB2.0 Serial 1x RS-232/422/485 GPIO 1x GPIO by header eDP / LVDS 1x eDP / LVDS header

Storage

Storage Interface	SATA 1x SATA3 M.2 1 x M.2 2280 Key M support PCIe Gen4 or SATA Note: M.2 slots are identical to expansion slots

Mechanical specifications

Dimensions 100 mm x 72mm (L x W)
Type SBC Pico ITX
Electrical specifications

Input range DC input 12V±5%
Environmental specification

Storage temperature -20°C/+80°C
Operating Temperature 0°C/+60°C
relative air humidity 10%~90%, non-condensing
General data

Manufacturer Commell
Application Automation
Warranty 18 Months

Downloads

Manual	LP-17B_Manual_V11.pdf
datasheet	LP-17B_Datasheet.pdf
