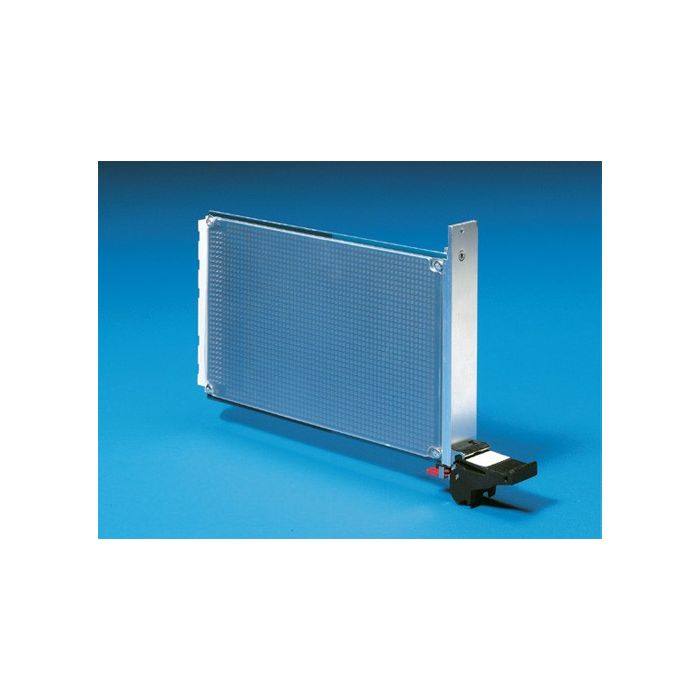

Plastic Cover CPCI perfor. 3U/160 mm

SKU:
3687932
Fabrikant:
HEITEC AG
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Product features
    Product typeFront panels, Handles
    Product groupPlastic covers for PCBs
    Versionvented, for CPCI, max. temperature 65°C
    Handle holeNo
    General product informationFor PCBs
    For mechanical protection of the component
    side and of the EM C gaskets.
    Attachment holes as per CPCI or VME -specifications.
    Optionally available as perforated or
    solid version.

    Material:
    • 0.3 mm plastic, anti-static
    • Maximum temperature up to 65°C

    1) 3687.932 - 3687.934
    and 3686.572 - 3686.574:

    0.5 mm plastic, transparent, anti-static
    UL 94-V0, maximum temperature up to 65°C
    2) 9905.574 and 9905.990:
    0.5 mm plastic, black, anti-static UL 94-V0,
    maximum temperature up to 120°C
    Weight0,009 kg
  • General data
    ManufacturerHEITEC AG
    Ean code4250558922972
    Warranty12 Months
