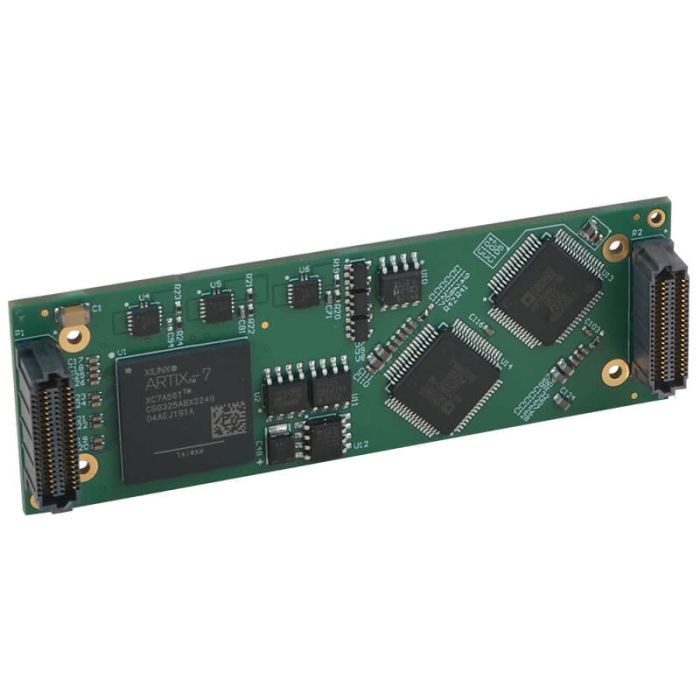

    main product photo

    QMC Module 20-CH Anal. IN 16-bit A/D conv. VITA 93 QMC air

    SKU:
    QMC351-3111
    Fabrikant:
    Acromag
    • Bus Type : PCIe
    • Type Mezzanine : QMC
    QMC Module 20-CH Anal. IN 16-bit A/D conv. VITA 93 QMC air
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      CharacteristicsFeatures
      • 20 analog input channels
      • Individual 16-bit ADC on each channel
      • Simultaneous Sampling ADC with 1MSPS sampling rate (1MHz)
      • Software-selectable input voltage range
      • Input ranges selectable per-channel with 12 unipolar/bipolar voltage range options
      • Single-ended analog input ranges:
      0-5V, 0-10V, 0-12.5V, ±2.5V,
      ±5V, ±6.25V, ±10V, ±12.5V
      • Differential pair input ranges:
      ±5V, ±10V, ±12.5V, ±20V
      • Two bandwidth options:
      25KHz and 220KHz
      • ±21 input clamp on all channels
      • 1M Ω input on all channels
      • Reliable software calibration with coefficients stored on-board
      • Individual selection and updating of analog input channels
      • Failsafe reset
      • Extended temperature range and support for conduction-cooled systems
    • Ports & Interfaces
      External I/OInput Channel Configuration
      20x differential or single-ended analog inputs

      Analog input ranges
      Selectable on individual channel basis
      Bipolar single-ended:
      ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V
      Unipolar single-ended:
      0 V to 12.5 V, 0 V to 10 V, 0 V to 5 V.
      Bipolar differential:
      ±20 V, ±12.5 V, ±10 V, ±5 V
      Internal I/OVITA 93 QMC
      2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
    • Mechanical specifications
      Dimensions78.25mm (L) x 26.00mm (W) x 11.00mm (H)
      Bus TypePCIe
      Type MezzanineQMC
    • Environmental specification
      Storage temperature-55°C/+125°C
      Operating Temperature0°C/+70°C
      relative air humidity5% to 95% non-condensing
    • Software support
      Operating SystemWindows, Linux, VxWorks
    • General data
      ManufacturerAcromag
      Warranty24 Months
    Downloads
  • datasheetQMC350-Analog-Input_20-Channel_16-Bit_AD_Module.pdf
    		•
