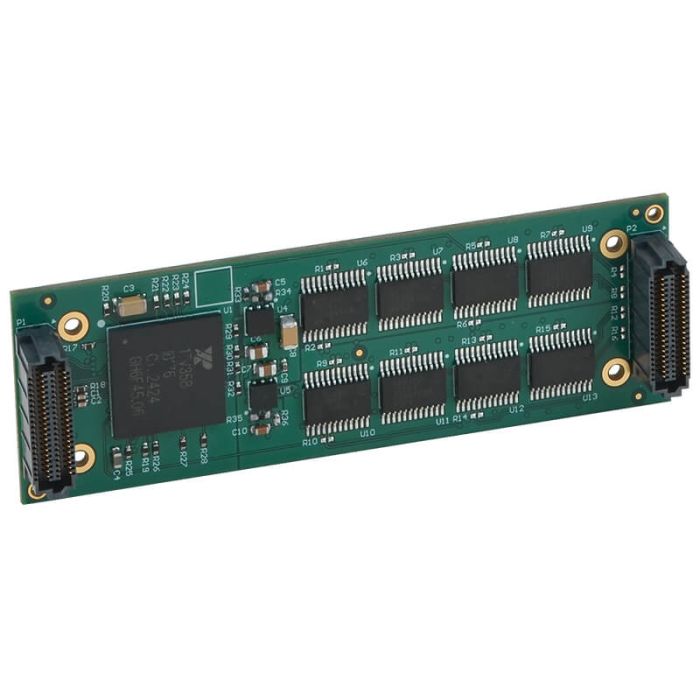

QMC Module 8x232/422/485 Async Serial VITA 93 QMC air-cool

SKU:

QMC511-1111

Fabrikant:

Acromag

Number of ports : 8
I/O Type : Serial
Bus Type : PCIe
Type Mezzanine : QMC

QMC Module 8x232/422/485 Async Serial VITA 93 QMC air-cool

Please contact us for the delivery time.

Add to Compare

Details

More Information

Downloads

More Information

Main features

Characteristics

Features
• Eight (octal) asynchronous serial communication ports
• Each port programmable for EIA/TIA-232-F, EIATIA-422B, or EIA-485
• Full/half-duplex EIA-485 line support
• 16550-compatible register set
• 256-byte transmit and receive FIFO buffers with programmable trigger levels
• Programmable baud rate (up to 20Mbps)
• Individually controlled transmit, receive, line status, and data set interrupts
• General-purpose 16-bit timer/counter
• Extended temperature range and support for conduction-cooled systems

Ports & Interfaces

External I/O	Serial 8x independent, non-isolated serial ports (RS-232/422/485) with a common single return connection
Internal I/O	VITA 93 connector 2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces.

Mechanical specifications

Dimensions 78.25mm (L) x 26.00mm (W) x 11.00mm (H)
Bus Type PCIe
Type Mezzanine QMC
Environmental specification

Storage temperature -55°C/+125°C
Operating Temperature 0°C/+70°C
relative air humidity 5% to 95% non-condensing
Software support

Operating System Windows, Linux, VxWorks
General data

Manufacturer Acromag
Warranty 24 Months

Downloads

datasheet	QMC510_Octal-Serial-Communication-Module_Air-or-Conduction-Cooled.pdf
