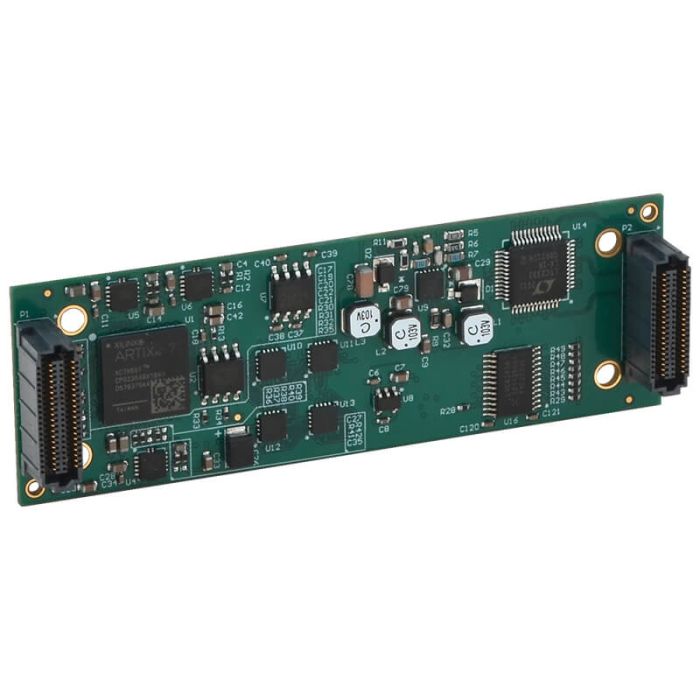

    main product photo

    QMC Module Analog- & Digital-I/O VITA 93 QMC air

    SKU:
    QMC731-1111
    Fabrikant:
    Acromag
    • Number of ports : 16+4+16
    • I/O Type : Analog IO & Digital IO & Counter
    • Bus Type : PCIe
    • Type Mezzanine : QMC
    QMC Module Analog- & Digital-I/O VITA 93 QMC air
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    More Information
    • Main features
      CharacteristicsFeatures
      • Eight analog input channels with 16-bit A/D
      - 1.264µs conversion time (791KHz)
      - 1026 sample FIFO buffer
      - Unipolar and bipolar voltage ranges
      - Input range selectable for each channel
      • Four analog output channels with 16-bit D/A
      - 7.5µs output settling time
      - Individually configured operating mode
      - Direct, single, continuous, or FIFO mode
      - Software, timer, or external trigger
      - Unipolar and bipolar voltage ranges
      - Output range selectable for each channel
      • Sixteen digital input/output channels
      - TTL-compatible thresholds
      - Programmable change/level interrupts
      - Failsafe power-up and reset
      • Multi-function 32-bit counter/timer
      - Waveform generation
      - Event counting
      - Watchdog timing
      - Pulse-width or period measurement
      - Quadrature position measurement
      • Extended temperature range and support for conduction-cooled systems
    • Ports & Interfaces
      External I/OAnalog Input
      8x differential, voltage (non-isolated), 16 bits, high-speed A/D conversion

      Analog Output
      4x single-ended voltage (non-isolated), 16 bits, individually configured

      Digital I/O
      16x digital input/outputs, configured as TTL-level input or output in groups of eight channels.

      Counter / Timer
      32x Multi-function, high-resolution counter/timer supports a variety of measurement options
      Internal I/OVITA 93 connector
      2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
    • Mechanical specifications
      Dimensions78.25mm (L) x 26.00mm (W) x 11.00mm (H)
      Bus TypePCIe
      Type MezzanineQMC
    • Environmental specification
      Storage temperature-55°C/+125°C
      Operating Temperature0°C/+70°C
      relative air humidity5% to 95% non-condensing
    • Software support
      Operating SystemWindows, Linux, VxWorks
    • General data
      ManufacturerAcromag
      Warranty24 Months
    Downloads
  • datasheetQMC730_Multi-function-Analog-and-Digital-IO-Module_Air-or-Conduction-Cooled.pdf
    		•
