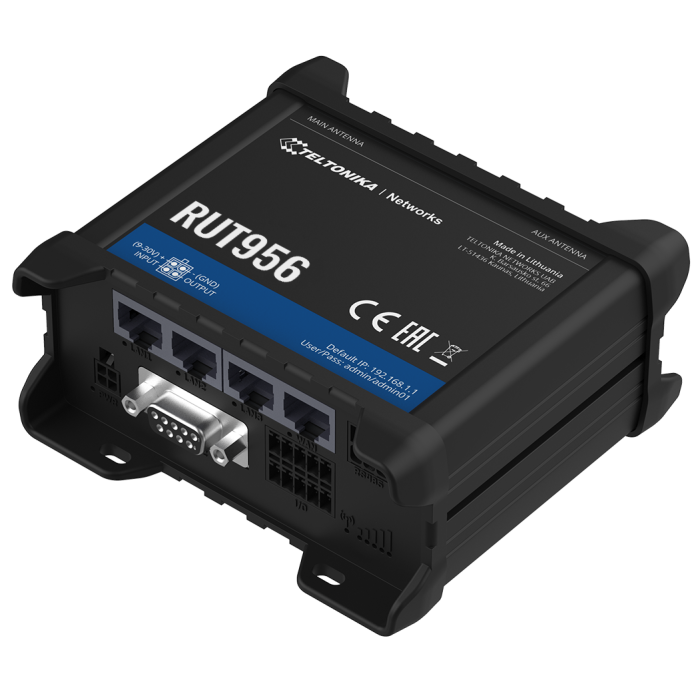

    Teltonika RUT956 LTE RS232/RS485 Router

    SKU:
    RUT956200000
    Fabrikant:
    Teltonika
    • SKU : RUT956200000
    • Processor : MIPS 24KEc
    • Max memory : 128MB
    • Operating Temperature : -40°C/+75°C
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads
    RUT956 is an industrial router that combines dual-SIM cellular 4G LTE, Wi-Fi, and wired connectivity options and additionally offers GNSS capabilities.

    Automatic WAN failover ensures solution uptime even if the primary connection is lost.

    Serial communication interfaces enable integrating more varied devices to the solution ecosystem, even legacy equipment.

    Digital and analog Inputs/Outputs with advanced RutOS software features facilitate equipment control, automation, and event notifications.

    Packed with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT, and multiple VPNs.


    More Information
    • Processor
      ProcessorMIPS 24KEc
      Base Frequency580 MHz
      Number of cores1
    • Memory
      Memory typeDDR2
    • Main features
      Characteristics● CONNECTIVITY 4G/LTE (Cat 4), 3G, 2G
      ● DUAL SIM For additional connection reliability
      ● Global Navigation Satellite System for location services and time synchronization
      ● Multiple digital and analog inputs and outputs for equipment control and event notification
      ● RS232/RS485 serial communication interfaces
      ● Compatible with Teltonika Remote Management System
    • Ports & Interfaces
      LAN Interface4
      USB 2.0 ports1
      External I/OLan
      1x WAN port (can be configured to LAN) 10/100 Mbps, supports auto MDI/MDIX
      3 x LAN ports, 10/100 Mbps, supports auto MDI/MDIX

      Serial
      1x DB9 connector, full RS232 (with RTS, CTS)
      1x RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

      Digital I/O
      1x digital dry input (0 - 3 V),
      1x digital galvanically isolated input (0 - 30 V),
      1x Digital non-isolated input
      (on 4 pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
      1x digital open collector output (30 V, 250 mA),
      1x SPST relay output (40 V, 4 A),
      1x Digital open collector output (30 V, 300 mA, on 4 pin power connector)

      USB
      1x USB 2.0
    • Storage
      Storage capacity16MB Flash memory
    • Mechanical specifications
      Dimensions110 x 50 x 100 mm
      CasingIP30
      MountingDIN rail (can be mounted on two sides), flat surface placement
    • Product features
      Weight287 g
    • Electrical specifications
      Input range9 – 30 VDC
      Power consumption< 2 W idle, < 7 W Max
    • Environmental specification
      Storage temperature-40 °C to 75 °C
      Operating Temperature-40°C/+75°C
      relative air humidity10% to 90% non-condensing
    • General data
      ManufacturerTeltonika
      Ean code4779027312149
    Downloads
  • ManualQSG_RUT956_EN_v1.0.pdf
    datasheetRUT956_Datasheet-v1.1.pdf
    		•
