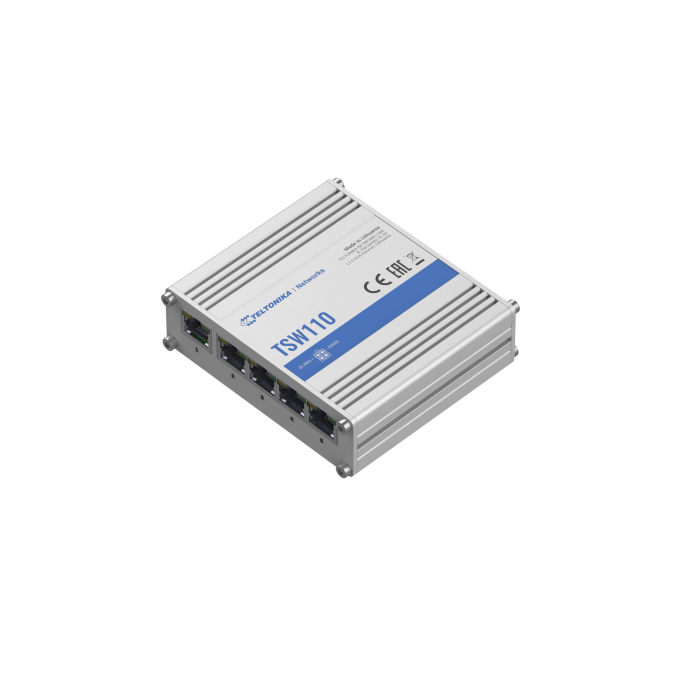

TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.

Possible to power up through the first LAN port.

It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.

It offers a wide range of supported power supply voltages (9-30 V).

Ideal for professional high bandwidth applications to provide reliable data connection.


More Information
  • Main features
    Characteristics● PLUG-N-PLAY No additional configuration needed
    ● Rugged aluminium housing
    ● DIN rail and surface mounting options
    ● Wide range of supported power supply voltages
    ● 5x Gigabit Ethernet with speeds up to 1000 Mbps
  • Ports & Interfaces
    External I/OLan
    5x LAN ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

  • Mechanical specifications
    Dimensions100 x 30 x 85 mm
    CasingAluminum housing
    MountingDIN rail or wall mounting (additional kit needed), flat surface placement
  • Product features
    Weight227 g
  • Electrical specifications
    Input range9 - 30 VDC
    Power consumption< 0.4 W/ <1.8 W
  • Environmental specification
    Storage temperature-40°C/+75°C
  • General data
    ManufacturerTeltonika
    Warranty24 Months
