main product photo

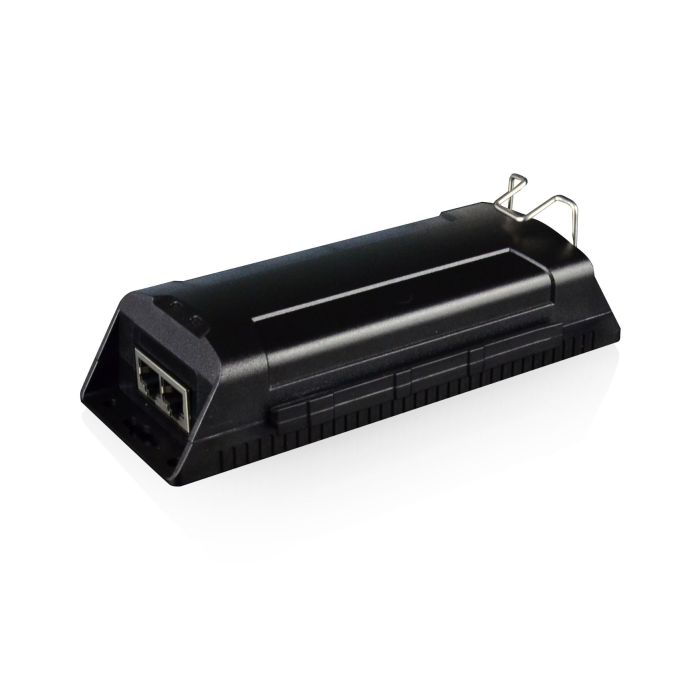

Utepo 30W Gigabit Midspan PoE Injector

SKU:

UTP7201GE-PSE30

Fabrikant:

Utepo

Manufacturer : Utepo
Device : PoE Inverter

Lokaal op voorraad

Details

More Information

Downloads

More Information

Main features

Characteristics	• PoE+ power supply standard; Output power consumption up to 30W • IEEE 802.3af/at、IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T • Higher conversion efficiency(90%); Lower heat radiation • Working Temperature: -10℃～55℃ • 6KV lightning protection; 8KV ESD • No fan, no noise, dustproof • LEDs indicate operation status

Ports & Interfaces

LAN Interface	1
PoE available	Yes
POE capability	• PoE Power Supply Type: End-span • PoE Power Output: DC 54V/30 watts • Output Ripple: ＜5% • Power Pin Assignment: Pair: 1/2(+),3/6(-)

Mechanical specifications

Dimensions 160mm (l) × 64mm (w) × 60mm (h)
Product features

Weight 200g
Environmental specification

Storage temperature • - 40℃~85℃
Operating Temperature -10°C/+55°C
relative air humidity • 0~90%

Certificates

standards	Surge Protection • P Power：1KV(Differential Mode),2KV(Common Mode)1.2/50us，8/20us • Ethernet：2KV(Differential Mode),6KV(Common Mode)10/7000us ESD • 1a Contact Discharge Level 3 • 1b Air Discharge Level 3 • Per: IEC61000-4-2

General data

Manufacturer Utepo
Warranty 24 Months

Downloads

Manual	UTP7201GE-PSE30.PDF

€79.05 €65.33
