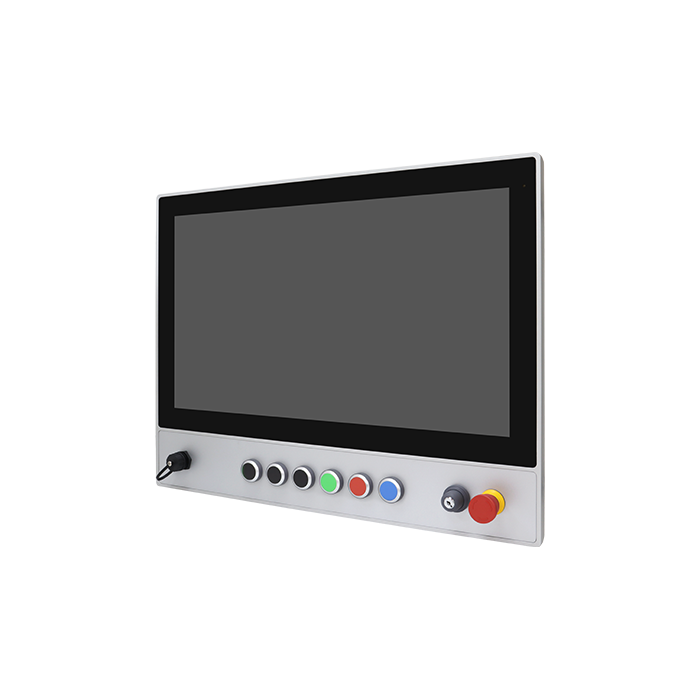

    main product photo

    21.5" Full IP65 PPC i3-1115G4E PCAP Button Panel Swing Arm

    SKU:
    ABOS-921CP
    Fabrikant:
    Aplex
    • Application : Automation, IoT
    • Screen size : 21,5"
    • Touchscreen type : Capacitive Touch
    • Processor : Intel Core
    21.5" Full IP65 PPC i3-1115G4E PCAP Button Panel Swing Arm
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    Downloads

    Options


    In addition to the product listed, the following model variants are also available from us.
    • ABOS-916CP - 15.6" Full IP65 PPC i3-1115G4E PCAP Button Panel Swing Arm

    If you have any questions, please contact us at sales@arcobel.com.
    More Information
    • Display
      Screen size21,5"
      Touchscreen typeCapacitive Touch
      Contrast Ratio1000:1
      Luminance (cd/m2)250
      Viewing Angle (H/V°)178°(H)/178°(V)
      Max screen resolution1920 x 1080
    • Processor
      ProcessorIntel Core
      Processor serieTiger Lake
      Socket typeBGA1449
      Base Frequency2.2GHz
      Number of cores2
      TDP15W
      chipsetSoC
    • Memory
      Memory typeDDR4
      Memory slots2
    • Video
      ChipsetIntel® UHD Graphics for 11th Gen Intel® Processors
    • Main features
      CharacteristicsFeatures
      • 21.5” Full HD TFT LED LCD
      • Intel 11th Gen. (Tiger Lake-UP3) Processors
      • Support Projected Capacitive Touch
      • Built-in RAFI FS22+ Functional Buttons for Intuitive Operation
      • Top/Bottom Swing Arm Mounting
      • IP65 Full Sealed with Anti-Corrosion Enclosure
      • Gap free Sealing and Slim Front Frame Architecture at Front Bezel
      • DC 9~36V Wide Range Power Input
    • Expansion
      expansion slotsMini PCIe
      1x Full size mSATA/mPCIe slot (mPCIe as default, select by BIOS )

      M.2
      1x M.2 2230 E-key slot for Wi-Fi/BT Module

      USB
      1x Nano SIM card
    • Ports & Interfaces
      LAN Interface2
      USB 3.x ports4
      Audio interfaceLine-in/ Line-out/ MIC (optional)
      External I/OEthernet Ports
      1 x Intel i219LM, RJ45 GbE LAN 1 x Intel i225LM, RJ45 2.5GbE LAN

      USB
      4 x USB 3.2 Type-A

      Serial Port
      1 x COM1 (RS-232/422/485) (optional)
      1 x COM2 (RS-232/422/485, supports 5V/12V/RI) (optional)

      Digital I/O
      8 bit GPIO (optional)

      Front I/O
      USB
      1 x USB 2.0 Type-A

      Functional Buttons
      1 x Emergency Button (default)
      Default: 1 x BLUE (reset) / 1 x RED (stop) / 1 x GREEN (start)
      Optional: 3 x BLACK (self-defined) / 1 x Key Switch
    • Storage
      Storage InterfaceM.2
      1 x M.2 2280 M-key (PCIe x4) slot for PCIe/NVMe SSD
    • Mechanical specifications
      Dimensions545.80 x 418 x 162mm
      CasingFull IP65
      MountingSwing Arm support Rittal CP-40
    • Product features
      Weight17.5kg
    • Electrical specifications
      Input rangeDC 9~36V
      Power consumptionMAX: 44W
    • Environmental specification
      Storage temperature-30°C/+70°C
      Operating Temperature0°C/+50°C
      relative air humidity10 to 90% @ 40°C, non-condensing
    • Certificates
      certificatesMeet CE/FCC Class A / UKCA
    • General data
      ManufacturerAplex
      ApplicationAutomation, IoT
      Warranty24 Months
    Downloads
  • ManualABOS-9XXCP_USER_MANUAL_V1.3.pdf
    datasheetABOS-921CP_V1.0.pdf
    		•
