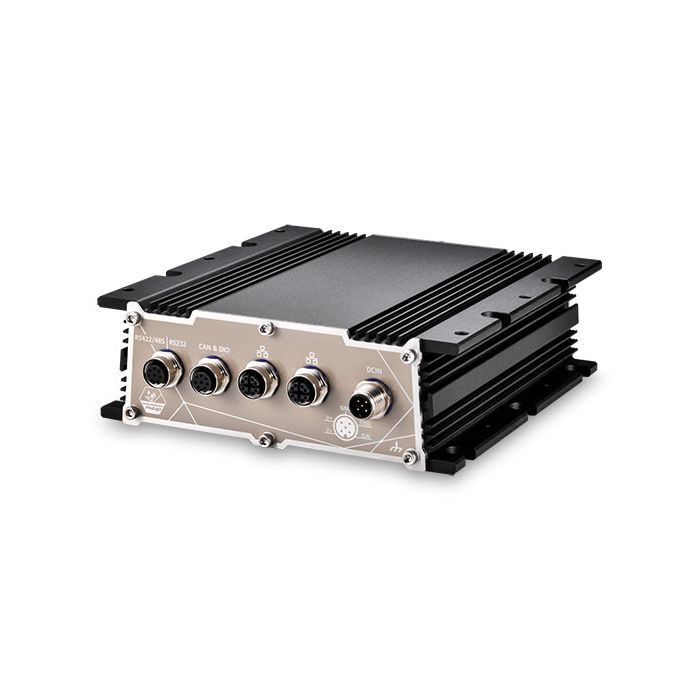

Core i3 N305 IP67 2x2.5GbE 2xUSB CAN DIO M12 connectors
-
SKU :
POC-766AWP
-
Manufacturer :
Neousys
-
Processor :
Intel Core
-
Max memory :
16GB
-
Operating Temperature :
-25°C/+70°C
Core i3 N305 IP67 2x2.5GbE 2xUSB CAN DIO M12 connectors
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Processor
| Processor | Intel Core |
|---|
| Processor serie | Alder Lake |
|---|
| Base Frequency | i3-N305: 1.8GHz / 3.8GHz |
|---|
| Number of cores | 8 |
|---|
| TDP | 15W |
|---|
| chipset | SoC |
|---|
-
Memory
| Memory type | DDR5 SO-Dimm |
|---|
| Memory slots | 1 |
|---|
-
Video
| Connections | HDMI™ Port
1x HDMI™ 1.4b, supporting 3840x2160 |
|---|
| Chipset | Integrated Intel® UHD Graphics with 32EUs |
|---|
-
Main features
| Characteristics | Features
• POC-766AWP - IP67 rated waterproof and dustproof design
• Intel® Alder Lake Core™ i3-N305 processor, 8x E-Cores
• 2x 2.5GbE Ports via M12 X-coded connector
• 1x isolated RS-232, 1x isolated RS-422/485 via M12 X-coded connector
• 3x isolated digital I/O and 1x CAN2.0B via M12 A-coded connector
• Temperature operation: -25°C/+70°C
• 8V-35V DC input with Ignition Power Support, via M12 A-coded connector |
|---|
-
Expansion
| expansion slots | Mini PCIe Slot
1x full-size mini PCIe Socket, internal micro SIM Socket. |
|---|
-
Ports & Interfaces
| LAN Interface | 2 |
|---|
| External I/O | Ethernet Ports
2x 2.5GbE Ports via M12 X-coded connector
Serial Ports
1x isolated RS-232, 1x isolated RS-422/485 via M12 X-coded connector
Additional I/O
3x isolated digital I/O & 1x CAN2.0B via M12 A-coded connector
Optional - DEVELOPER Kit Version
USB Ports
2x USB3.2 Gen2x1 Port, Type-A
HDMI
1x HDMI 1.4b, supporting 3840x2160 |
|---|
| PoE available | No |
|---|
-
Storage
| Storage Interface | M.2 Slot
1x M.2 2280 M-Key (PCIe Gen3x4), support SATA Signal |
|---|
-
Mechanical specifications
| Dimensions | (WxDxH): 161.5mm x 169mm x 52.7mm |
|---|
| Mounting | Wall-Mount or DIN-Rail Mount (optional) |
|---|
-
Product features
-
Electrical specifications
| Input range | 8V-35V DC Input via M12 A-coded connector |
|---|
| Ignition control | Yes |
|---|
-
Environmental specification
| Storage temperature | -40°C/+85°C |
|---|
| Operating Temperature | -25°C/+70°C |
|---|
| relative air humidity | 10%-90%, non-condensing |
|---|
-
Certificates
| certificates | Vibration
MIL-STD-810H, Method 514.8, Category 4
Shock
MIL-STD-810H, Method 516.8, Procedure I
EMC
CE/FCC Class A, according to EN 55032 & EN 55035
Safety
UL 62368-1, IEC 62368-1 |
|---|
-
General data
| Manufacturer | Neousys |
|---|
| Application | Automation |
|---|
| Warranty | 24 Months |
|---|
|
