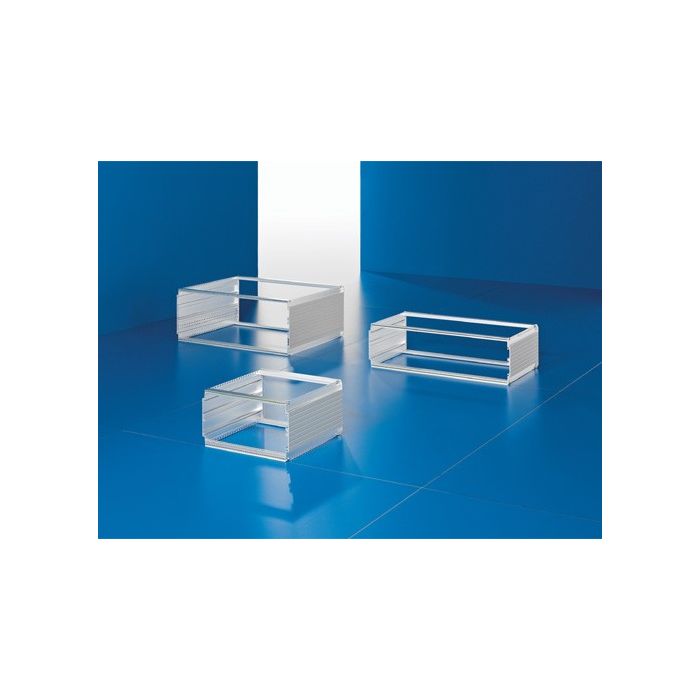

Enclosure EMC 2U/42HP/250,4mm

SKU:
3983000
Fabrikant:
HEITEC AG
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Product features
    Product typeHeiPac Vario-Module
    Product groupHeiPac Vario-Module 2 U, EMC
    Side panel depth250,4 mm
    VersionBasic enclosure
    Handle holeNo
    General product informationTechnical specifications:
    Optionally for use as an instrument case or rack-mount enclosure. External dimensions according to IEC 60 297-3 for installation in enclosures, 482.6 mm (19˝ ). Installation dimensions for plug-in units according to IEC 60 297-3-101. Material/surface finish:
    • Side panels: Extruded aluminum section, spray-finished in RAL 7035
    • Cross profiles: Extruded aluminum section, clear-chromated
    • Corner trims: zinc-plated, spray-finished in RAL 7035
    • Side trim panels: Extruded aluminum section, spray-finished in RAL 7035
    • Contact points: conductive
    Protection category:
    IP 40 for non-vented version Supply includes:
    • 2 side panels
    • 4 horizontal rails
    • 4 tapped strips
    • 2 rear corner trims
    • Assembly parts
      • Equipped as an instrument case
      • Equipped as a rack-mount enclosure
    Note:
    Corner trims, mounting flanges and top/bottom covers have to be ordered separately.
    Weight1,04 kg
  • General data
    ManufacturerHEITEC AG
    Ean code4250558932742
    Warranty12 Months
