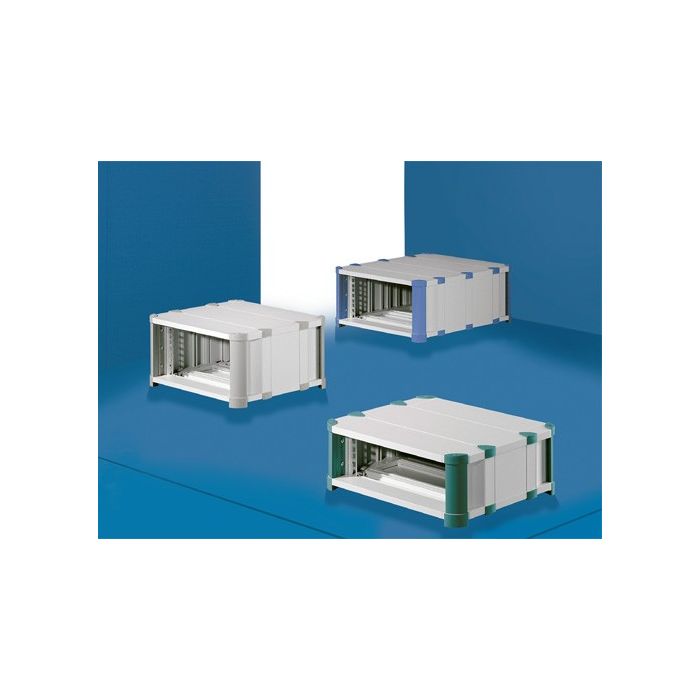

HeiCase solid RAL5012 2U/½19"/300mm
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Product features
| Product type | HeiCase |
|---|
| Product group | HeiCase 269,2 mm (1/2 19'') |
|---|
| Handle hole | No |
|---|
| General product information | Technical specifications:
Depth: 300 mm, 420mm, 540 mm
Installation width: 269,2 mm (½ 19 ̋ )
nstallation options: 269,2 mm (½ 19 ̋ )-slide-in equipment to 60 297-3
Protection category:
IP 42 for unvented version
Supply includes:
2 side panels
2 covers
8 corner caps
8/12/16 cover caps
(300/420/540 mm depth)
4 19" mounting brackets
4 threaded inserts
2 plain inserts
1 rear panel
Cases are supplied preassembled
Colour:
RAL 7035 (pale grey)
Decorative colours and corner caps:
RAL 5018 (turquoise)
RAL 5012 (pale blue)
RAL 7030 (stone grey)
Material/surface finish:
Covers:Extruded aluminium section/die-cast, spray-finished
Side panels: Extruded aluminium section, spray-finished
Corner caps: Plastic
(19 ̋ ) mounting bracket: Extruded aluminium section, clear-chromated
Property rights:
German registered design no. 96 09 457
UK reg. design no. 2064682
UK reg. design no. 2064682
US design patents
Des. 402,640 and Des. 423,464
Japan. reg. designs no. 1045507 and 1045508 |
|---|
| Weight | 4,4 kg |
|---|
-
