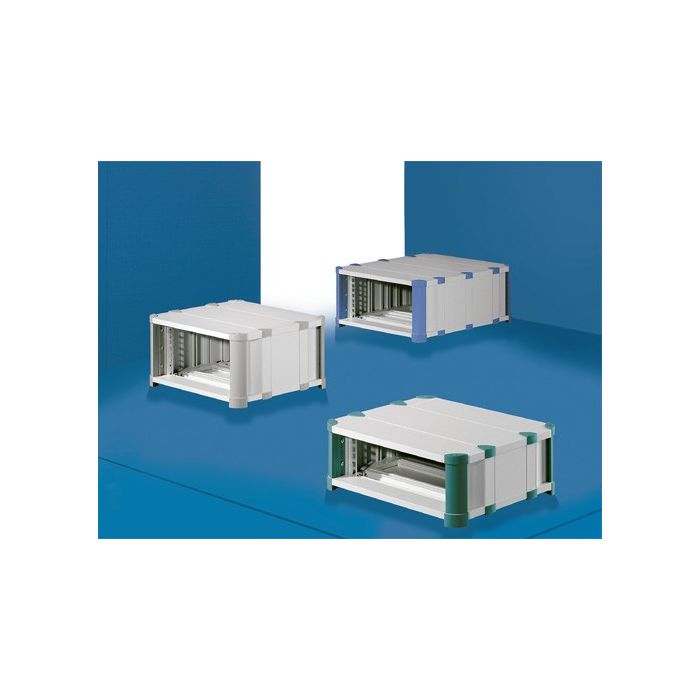

HeiCase solid RAL5012 3U/½19"/300mm
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Product features
Product type | HeiCase |
---|
Product group | HeiCase 269,2 mm (1/2 19'') |
---|
Handle hole | No |
---|
General product information | echnical specifications:
Depth: 300 mm, 420mm, 540 mm Installation width: 269,2 mm (½ 19 ̋ ) nstallation options: 269,2 mm (½ 19 ̋ )-slide-in equipment to 60 297-3
Protection category:
IP 42 for unvented version
Supply includes:
2 side panels 2 covers 8 corner caps 8/12/16 cover caps (300/420/540 mm depth) 4 19" mounting brackets 4 threaded inserts 2 plain inserts 1 rear panel Cases are supplied preassembled
Colour:
RAL 7035 (pale grey)
Decorative colours and corner caps:
RAL 5018 (turquoise) RAL 5012 (pale blue) RAL 7030 (stone grey)
Material/surface finish:
Covers:Extruded aluminium section/die-cast, spray-finished Side panels: Extruded aluminium section, spray-finished Corner caps: Plastic (19 ̋ ) mounting bracket: Extruded aluminium section, clear-chromated
Property rights:
German registered design no. 96 09 457 UK reg. design no. 2064682 UK reg. design no. 2064682 US design patents Des. 402,640 and Des. 423,464 Japan. reg. designs no. 1045507 and 1045508 |
---|
Weight | 5 kg |
-
