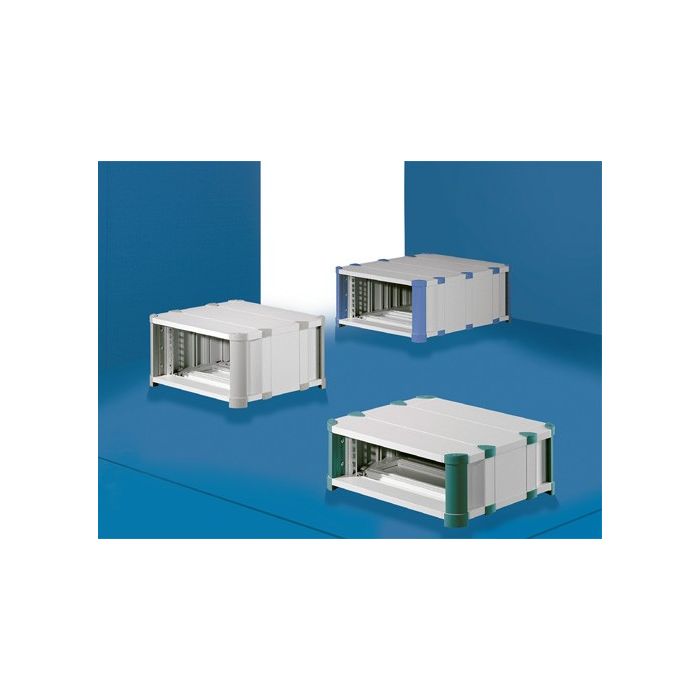

HeiCase Unvented 3U/1/2 19"/300T RAL5018
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
-
Product features
| Product type | HeiCase |
|---|
| Product group | HeiCase 269,2 mm (1/2 19'') |
|---|
| Width mm | 269,2 mm (1/2 19") |
|---|
| Side panel depth | 300 mm |
|---|
| Version | unvented |
|---|
| Handle hole | No |
|---|
| General product information | Technical specifications: - Depth: 300 mm, 420mm, 540 mm
- Installation width: 269.2 mm (½ 19˝)
- Installation options: 269.2 mm (½ 19˝)-slide-in equipment to IEC 60 297-3
Material/surface finish: - Covers: Extruded aluminum section/ die-cast, spray-finished
- Side panels: Extruded aluminum section, spray-finished
- Corner caps: Plastic 482.6 mm (19˝) mounting
- bracket: Extruded aluminum section, clear-chromated
Color:
RAL 7035 (pale grey)
Decorative colors and corner caps: - RAL 5018 (turquoise)
- RAL 5012 (pale blue)
- RAL 7030 (stone grey)
Protection category:
IP 42 for unvented version.
Supply includes: - 2 side panels,
- 2 covers,
- 8 corner caps,
- 8/12/16 cover caps (300/420/540 mm depth),
- 4 482.6 mm (19˝) mounting brackets,
- 4 threaded inserts,
- 2 plain inserts,
- 1 rear panel,
- Cases are supplied preassembled
Special sizes and colors available on request.
Property rights:
German registered design
no. 96 09 457
UK reg. design no. 2064682
US design patents
Des. 402,640 and
Des. 423,464
Japan. reg. designs
no. 1045507 and 1045508 |
|---|
| Weight | 4,8 kg |
|---|
-
General data
| Manufacturer | HEITEC AG |
|---|
| Ean code | 4250558923153 |
|---|
| Warranty | 12 Months |
|---|
|
