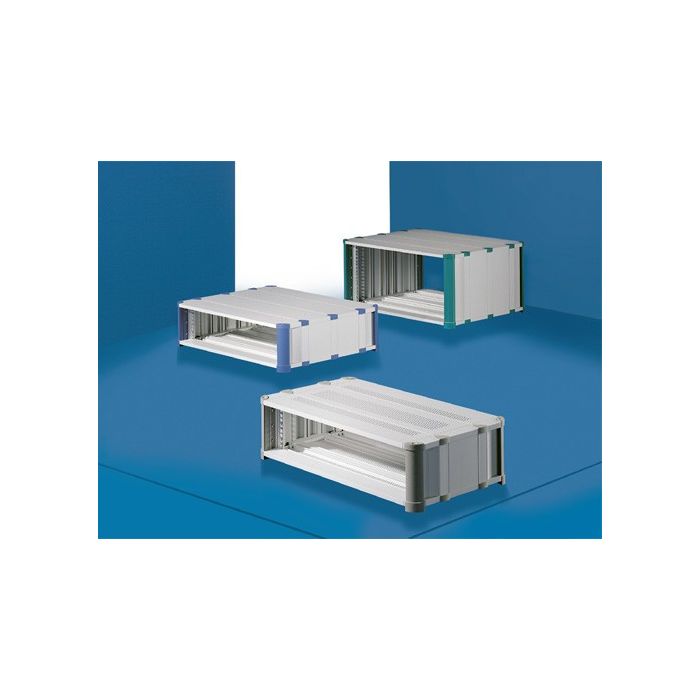

HeiCase Unvented 9U/19"/540T RAL7030

SKU:
3750914
Fabrikant:
HEITEC AG
Please contact us for the delivery time.
Details
More Information
Downloads
More Information
  • Product features
    Product typeHeiCase
    Product groupHeiCase 482,6 mm (19'')
    Width mm482,6 mm (19")
    Side panel depth540 mm
    Handle holeNo
    cover typeunvented
    General product informationTechnical specifications:
    • Depth: 300 mm, 420 mm, 540 mm
    • Installation width: 482.6 mm (19˝)
    • Installation options: 482.6 mm (19˝) slide-in equipment to IEC 60 297-3
    Material/surface finish:
    • Covers: Extruded aluminum section/ die-cast, spray-finished
    • Side panels: Extruded aluminum section, spray-finished
    • Corner caps: Plastic 482.6 mm (19˝) mounting
    • bracket: extruded aluminium section, clear-chromated
    Color: RAL 7035 (pale grey) Decorative colors and corner caps:
    • RAL 5018 (turquoise)
    • RAL 5012 (pale blue)
    • RAL 7030 (stone grey)
    Protection category:
    IP 42 for unvented version. Supply includes:
    • 2 side panels,
    • 2 covers,
    • 8 corner caps,
    • 8/12/16 cover caps (300/420/540 mm depth),
    • 4 482.6 mm (19˝) mounting brackets,
    • 4 threaded inserts,
    • 2 plain inserts
    • Cases are supplied preassembled
    Special sizes and colors available on request. Note:
    For rear installation, order back panel/door separately.
    Weight14 kg
  • General data
    ManufacturerHEITEC AG
    Ean code4250558931479
    Warranty12 Months
