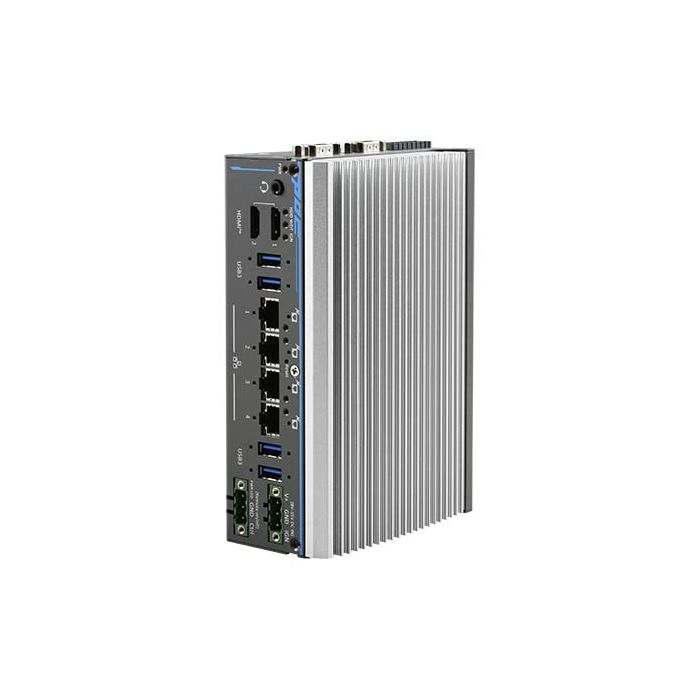

    Ryzen PRO 8640U 4xPoE+ 4xUSB3.2 4xCOM 2xHDMI MezIO 8V-35VDC

    SKU:
    POC-915
    Fabrikant:
    Neousys
    • SKU : POC-915
    • Manufacturer : Neousys
    • Processor : AMD
    • Max memory : 32GB
    • Operating Temperature : -25°C/+70°C
    Ryzen PRO 8640U 4xPoE+ 4xUSB3.2 4xCOM 2xHDMI MezIO 8V-35VDC
    Please contact us for the delivery time.
    Add to Compare
    Details
    More Information
    More Information
    • Processor
      ProcessorAMD
      Processor serieAMD® Ryzen™ Pro
      Base Frequency3.5GHz / 4.9GHz
      Number of cores6
      TDP15W-30W
      chipsetSoC
    • Memory
      Memory typeDDR5 SO-Dimm
      Memory slots1
    • Video
      ConnectionsHDMI Port
      2x HDMI 2.0b Port, support up to 3840x2160 @60Hz
      ChipsetAMD® Radeon RDNA3 Graphics
    • Main features
      CharacteristicsFeatures
      • AMD® Ryzen™ PRO 8640U processor, 15W-30W TDP, 6x Cores, 12x Threads
      • Up to 16TOPs NPU with Ryzen™ AI, up to 31TOPs for total SoC
      • Up to 32GB ECC/non-ECC DDR5-5600 SODIMM
      • 4x PoE+ GbE, 4x USB3.2 Gen, with Screw-Lock
      • Dual HDMI™ 2.0b Output, supporting up to 3840x2160 @60Hz
      • Front I/O access and DIN-Rail mounting design
      • -25°C/+70°C wide temperature operation range
      • MezIO™ expansion interface
    • Expansion
      expansion slotsMini PCIe Slot
      1x Full-size Mini PCIe Express Socket (PCIe, USB2), internal microSIM Slot

      Expandable I/O
      1x MezIO® expansion Interface for MezIO® modules
    • Ports & Interfaces
      GPIO Interface4CH isolated DI, 4CH isolated DO
      LAN Interface4
      USB 3.x ports4
      Audio interface1x 3.5 mm Input, Output
      External I/OEthernet Ports
      4x GbE PoE+ Ports, i350-AM4, Power budget: 32W (UL certified), 100W (maximum)

      USB Ports
      4x USB3.2 Gen2 (10Gbps), Type-A, Screw-Lock

      Serial Ports
      1x RS-232/422/485 (COM1), software programmable
      3x 3-wire RS-232 (COM2/3/4) or RS-422/485 (COM2)

      Digital Input/Output
      4CH isolated DI, 4CH isolated DO
      PoE availableYes
      POE capabilityPoE Capability
      4x GbE PoE+ Ports, i350-AM4, Power budget: 32W (UL certified), 100W (maximum)
    • Storage
      Storage InterfaceM.2 Slot
      1x M.2 2280 M-Key Slot (PCIe Gen4x4)
    • Mechanical specifications
      Dimensions(WxDxH): 64mm x 116mm x 176mm
      MountingDIN-Rail Mount (standard) or Wall-Mount (optional)
    • Product features
      Weight1.2kg fanless
    • Electrical specifications
      Input range8V-35V DC
    • Environmental specification
      Storage temperature-40°C/+85°C
      Operating Temperature-25°C/+70°C
      relative air humidity10%-90%, non-condensing
    • Certificates
      certificatesVibration
      MIL-STD-810H, Method 514.8, Category 4 (with wall-mount)

      Shock
      MIL-STD-810H, Method 516.8, Procedure I (with wall-mount)

      EMC
      CE/FCC Class A, according to EN 55032 & EN 55035

      Safety
      UL 62368-1, IEC 62368-1
    • General data
      ManufacturerNeousys
      ApplicationAutomation
      Warranty24 Months
    Price on request
    • No shipping cost for this product in the Benelux
    • 2 year warranty on this product
    • Extensive technical support
    • Contact us and request a demo
